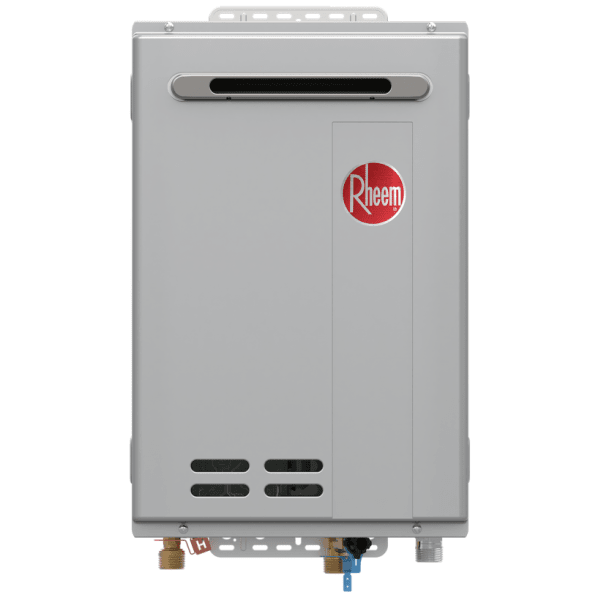

Rheem® 160,000 Btu/h RTG Series High Efficiency Non-Condensing Tankless Propane Water Heater for Outdoor Installation

Rheem® RTG-70XLP-3 160,000 Btu/h RTG Series High Efficiency Non-Condensing Tankless Propane Water Heater for Outdoor Installation

Item #: RHEE-RTG-70XLP-3
Mfr. part #: RTG-70XLP-3

Key specifications

FinishGrey
Fuel TypePropane
Max input160,000 Btu/h
Installation TypeOutdoor
UEF0.81

View all specifications

$819.99

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 46.2 lb

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Rheem
Manufacturer part #	RTG-70XLP-3
BTU Category	100-200,000 BTU
BTU Input Maximum	160,000 Btu/h
BTU Input Minimum	11,000 Btu/h
Cold & Hot Connections	3/4" MIP
Depth	8-7/8"
DHW Temperature Range	85-140 deg F
Efficiency Tier	Less than 90%
Elevation Rating	8,400'
Finish/Color	Grey
Fuel Type	Propane
Gas Inlet	3/4" MIP
Heat Exchanger Type	Copper Fin
Height	23-5/8"
Hot Water Flow	3.9 GPM @ 70 Degree Rise
Installation Type	Outdoor
Uniform Energy Factor (UEF)	0.81
Vent Material	None
Vent Size	None
Vent Type	Not Required
Warranty	12/5/1
Weight	54 Lbs
Width	13-7/8"

Rheem RTG-70XLP-3 is a 160,000 Btu/h RTG Series High Efficiency Non-Condensing Tankless Propane Water Heater for Outdoor Installation.

This RTG Series unit is a non-condensing gas tankless water heater that fires only when hot water is called for, delivering continuous hot water for whole-home use. It is built for outdoor installation and runs on propane. Non-condensing models use venting approved for that category of appliance, so follow the installation manual for vent material and length. Check that the gas line and meter can supply 160,000 Btu/h, and pair it with an isolation valve kit for service flushing.
