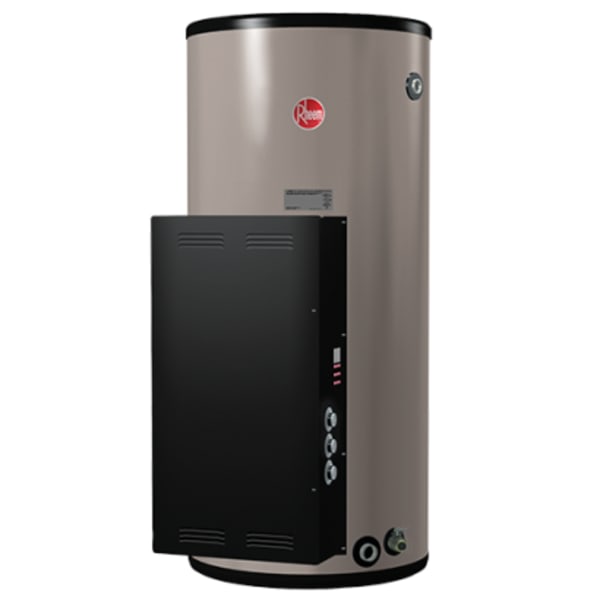

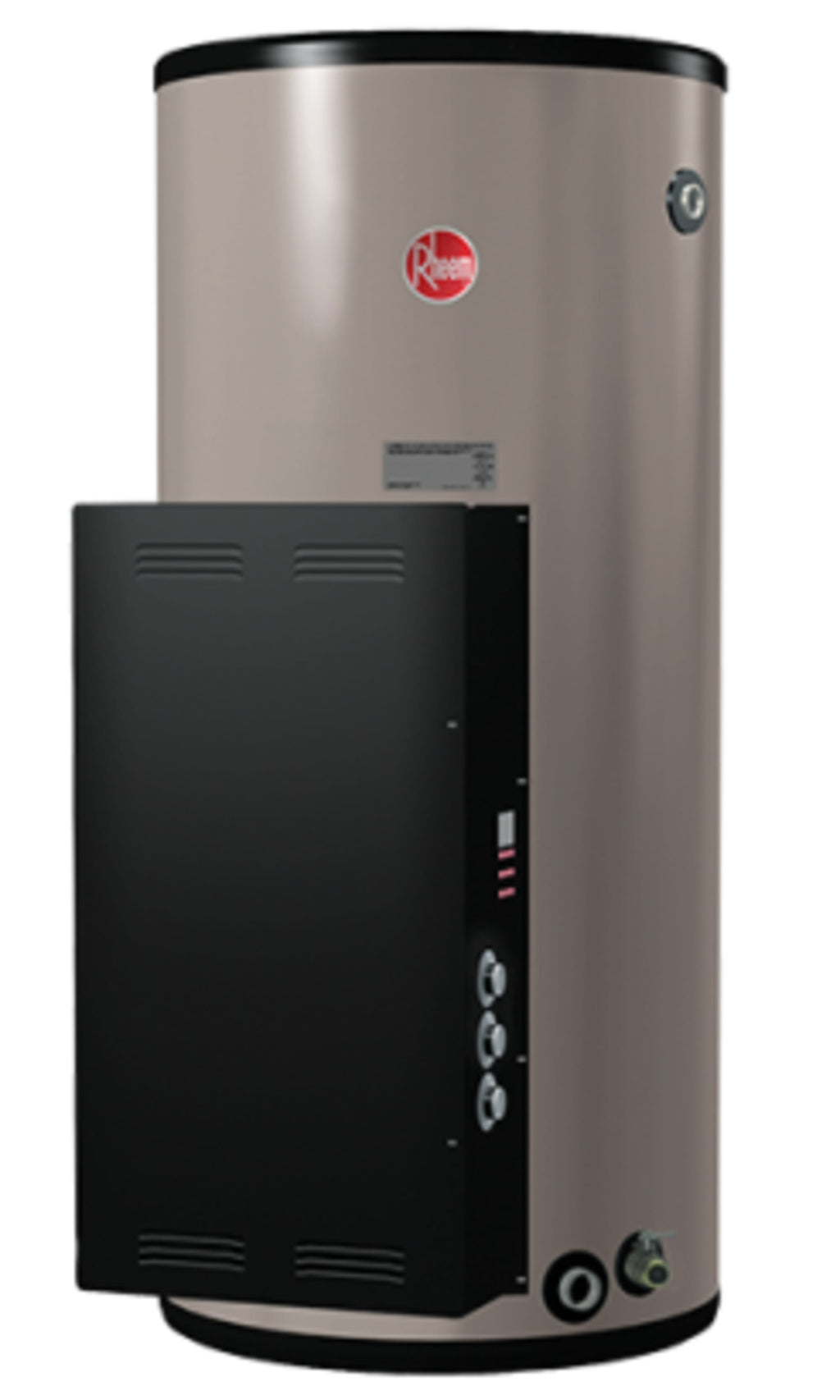

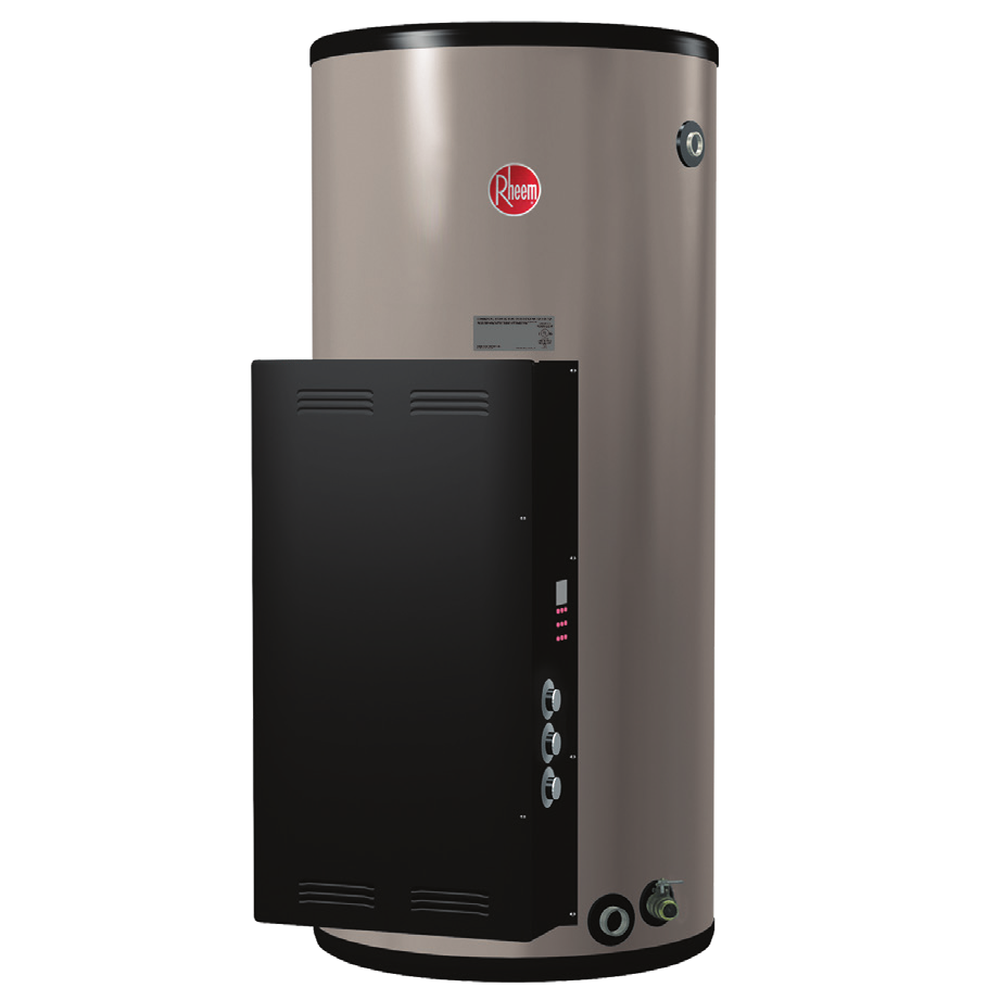

Rheem® ES85-18-G-208-3 85 Gal 18 kW 208V 3PH Heavy Duty Commercial Electric Water Heater. Built To Order in Our Warehous
Rheem

Rheem® ES85-18-G-208-3 85 Gal 18 kW 208V 3PH Heavy Duty Commercial Electric Water Heater. Built To Order in Our Warehouse

Item #
RHEE-ES85-18-G-208-3
Mfr. part #
ES85-18-G-208-3

Key specifications
  • FinishGray
  • Tank Capacity60 - 100 Gallons
  • Volts208V 3PH
  • Amps50
  • DHW Temperature Ra181 Deg F Max
View all specifications
$8,286.53
Each
In stock – 2 available
Estimated delivery: –

Processed in 1–2 business days; the carrier may call to schedule delivery.

Pricing a job? Get a written quote →Open a trade account

  • Ships by freight truck (LTL), contiguous U.S. only
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 350.0 lb
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandRheem
Manufacturer part #ES85-18-G-208-3
Amps50
Cold & Hot Connections1-1/2" NPT dielectric nipples
DHW Temperature Range181 Deg F Max
Elements6 x 3000W Elements
Finish/ColorGray
Number of Contactors4
Number of Fuses12
Tank Capacity60 - 100 Gallons
Tank Diameter28-1/4"
Tank Height57-11/16"
Tank MaterialGlass Lined Steel
Tank Size85 gallon
Thermostat TypeSurface Mount Thermostat
TypeHeavy Duty Commercial Electric Water Heater
Volts208V 3PH
Warranty3 Year Limited Tank, 1 Year Limited Parts
Watts18 kW
Weight350 lbs

Rheem ES85-18-G-208-3 is an 85 Gal 18 kW 208V 3PH Heavy Duty Commercial Electric Water Heater.

This heavy duty commercial electric water heater stores and heats water for businesses and larger buildings where a gas flue is not practical or not wanted. It is rated 18 kW at 208 V, three-phase. Before ordering, confirm the building voltage and phase match the unit and that the 85 gallon storage covers peak demand.

Specifications

  • Brand: Rheem Manufacturing
  • Manufacturer Part #: ES85-18-G-208-3
  • Capacity: 85 gallon
  • Power: 18 kW
  • Voltage: 208 V
  • Phase: 3-phase
  • Category: Commercial Tank Heaters - Electric
  • Shipping Weight: 350 lb

See also: Rheem Manufacturing, Commercial Electric Water Heaters, Water Heater Connectors, Water Heater Pans.

Specification Sheet (PDF)Use and Care Instructions (Canada) (PDF)Conversion Kit Feature Sheet (PDF)

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$8,286.53
In stock
