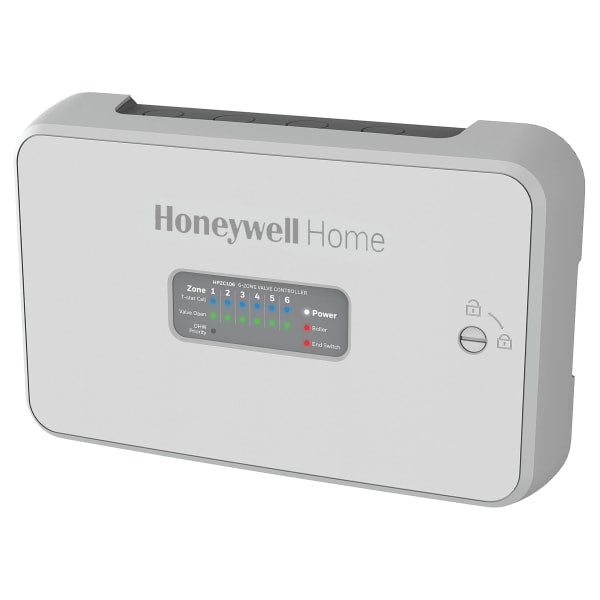

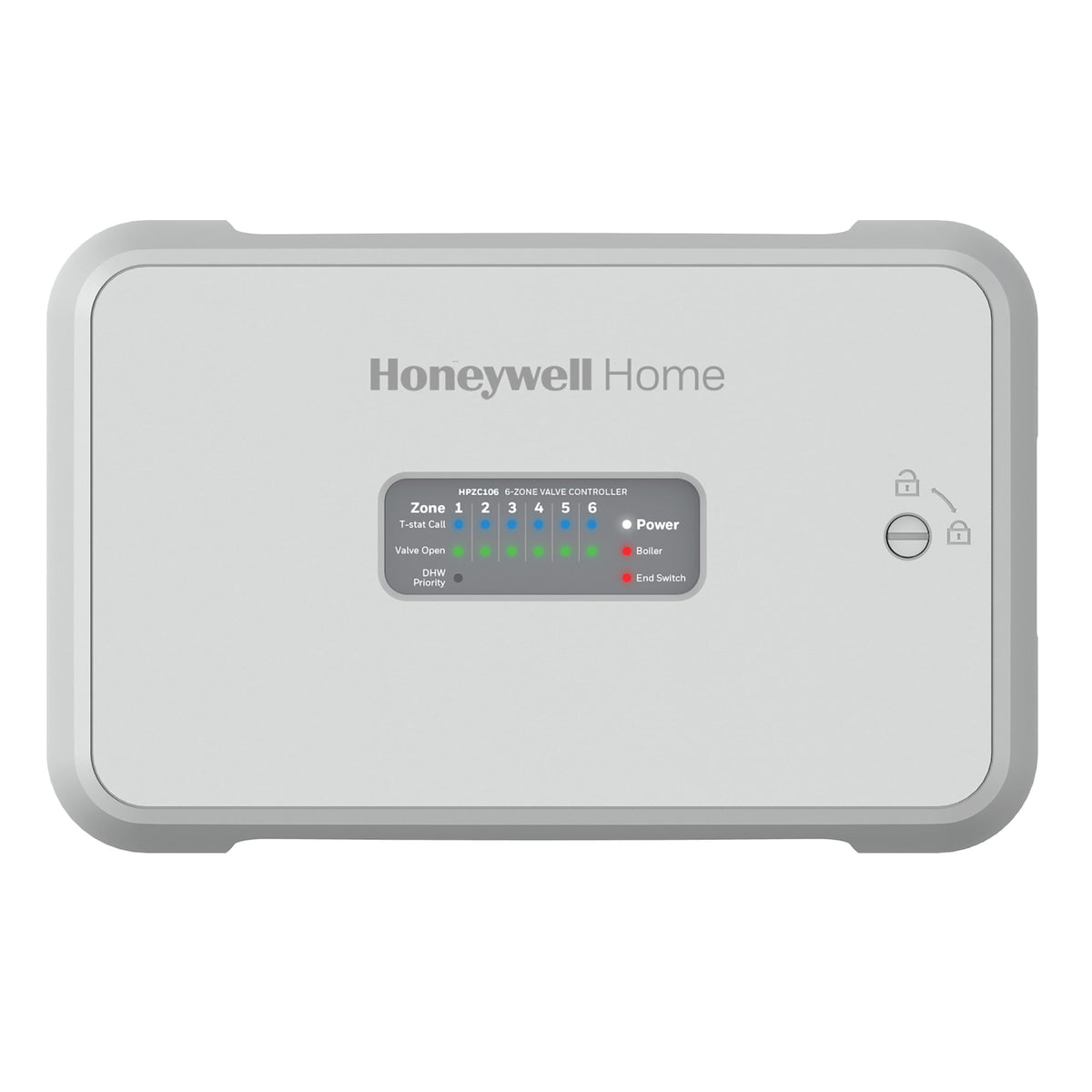

Honeywell Home HPZC106/U Six Zone Valve Controller

Name: Honeywell Home HPZC106/U Six Zone Valve Controller
Brand: Honeywell Home
SKU: HONE-HPZC106/U
Price: 269.20 USD
Availability: InStock

Honeywell HomeSKU: HONE-HPZC106/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$269.20

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 3–4 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 5.4 lb
Box size: 14.25 × 9.8 × 4 in

Voltage	120 Vac, 1Ph
Frequency	60 Hz
Electrical Connections	Quick screw terminals and wire ground
Electrical Ratings	For Pump End Switch and Priority Pump- 120 VAC 5A @ FL, 30A @ LR
Application	Hydronic zoning for homes with a central boiler, 6 zones controlling zone valves
Used With	Connected or non-connected thermostats including power stealing
Includes	(2) 24V 40 VA transformer
Dimensions	7-1/2 in. high x 11-3/4 in. wide x 2-1/8 in. deep
UL	Certified to UL Standards
CSA	CSA C/US Certified to CSA Standards
Electrical Ratings, Burner	For Main Burner, End Switch Burner, and Zones-24V, 1A

The HPZC106 is a zone valve controller from Honeywell Home for 6 zones.

A zoning control is what lets one boiler serve rooms that do not all want heat at the same time. Each zone gets its own thermostat and its own valve or pump; the panel takes the calls, drives the valves, and starts the boiler and circulator only when something actually needs heat.

The part that matters on installation is what the panel expects from the valve. A 2-wire valve is simply driven open; a 4-wire valve has an end switch that reports back when it has finished opening, and the panel waits for that before starting the circulator. Matching the panel to the valve type is what keeps the pump from running against a closed zone.

Size the panel to the zone count you will have, not the count you have today. Adding a zone later means replacing the panel, and the cost difference between four zones and six at the time of install is small compared with doing it twice.

Brand: Honeywell Home
Manufacturer Part #: HPZC106/U
Type: Zone valve controller
Zones: 6
UPC: 085267958417
Shipping weight: 4.95 lb
Category: Zone Controls

Full Specifications

Application	Hydronic Zoning for Homes with a Central Boiler, 6 Zones Controlling Zone Pumps

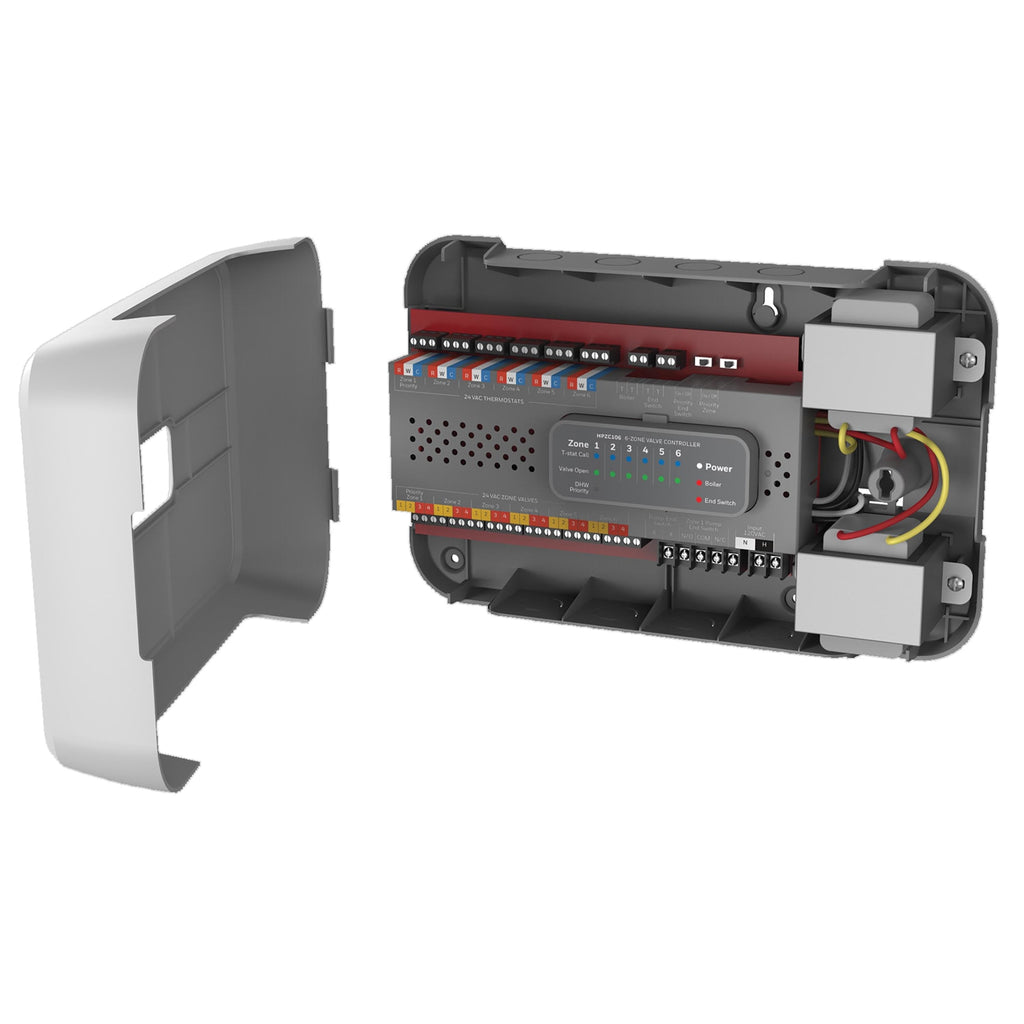

Product Features	C terminal available for every thermostat connection, The LED panel is visible and functional whether the cover is on or off, The covered control board reduces visual clutter and provides a surface for clear, plain language labeling, For 6 Zones; has LED display and Priority Zone Control
Approvals and Standards	UL Certified to UL Standards, CSA C/US Certified to CSA Standards
Compatible With	Hydronic Heating Systems
For Use With	Connected or non connected thermostats including power stealing thermostats
Includes	(2) 24V 40 VA transformer
Warranty	5 Years
Color	Gray, Dark Gray
Works with Power Stealing Thermostat	Yes
Product Height	7.5 in
Product Length	11.75 in
Product Width	2.13 in
