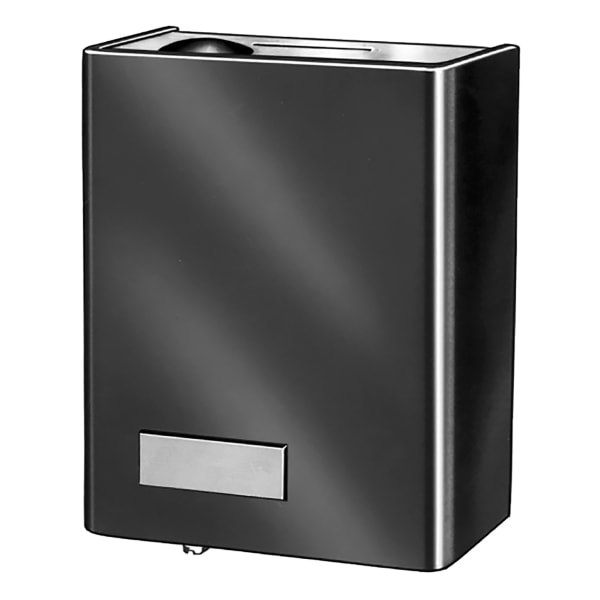

Resideo RA89A1074/U Switching Relay with 24V Control Coils

Name: Resideo RA89A1074/U Switching Relay with 24V Control Coils
Brand: Resideo
SKU: HONE-RA89A1074/U
Price: 108.81 USD
Availability: InStock

ResideoSKU: HONE-RA89A1074/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$108.81

Stock:

In stock (15 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 2.1 lb
Box size: 6.1 × 4.6 × 3.6 in

Frequency	50 Hz; 60 Hz
Electrical Connections	Control Circuit- 2-Wire
Electrical Ratings	Maximum Input-5.0 W
Application	Provide intermediate SPST switching of a line voltage device from a low voltage controller.
Includes	Integral transformer, enclosure
Dimensions	5 1/4 in. high x 4 1/4 in. wide x 2 5/16 in. deep
UL	Listed: File No. E4436, Guide No. XAPX
CSA	Certified: File No. LR1620
Temperature Ratings (F)	115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz.
Switching	SPST
Contact Ratings (AFL)	At 120 Vac-- 10.2A; 240 Vac-- 5.1A
Contact Ratings (ALR)	At 120 Vac-- 61.2A; 240 Vac-- 30.6A
Contact Ratings (resistive)	At 120 Vac-- 10A; 240 Vac-- 6.0A
Input Voltage	120V
Coil Ratings Voltage	24 Vac
Coil Ratings Current	0.4A

The RA89A1074 is a switching relay from Resideo (Honeywell Home), 24 V.

A relay lets a small control signal switch a much larger load. The thermostat or control board energizes a coil; the coil pulls contacts closed; the contacts carry the current that runs a blower, a circulator or an electric heat element. Nothing on the thermostat side ever sees line voltage.

Match the coil voltage and the contact rating to what you are replacing. A relay with the right coil but an undersized contact will work on the bench and weld shut in service.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: RA89A1074/U
Type: Switching relay
Voltage: 24 V
Shipping weight: 2.4 lb
Category: Switching Relays

Full Specifications

Application	SPST switching of a line voltage device from a low voltage controller
Product Features	Integral transformer provides low voltage power for control circuit
Approvals and Standards	UL Listed: File No. E4436, Guide No. XAPX, CSA Certified: File No. LR1620
Includes	Integral transformer, Enclosure
Coil Connection Type	Control Circuit 2 Wire
Number of Poles	1 Pole
Power Supply Frequency	50 Hz, 60 Hz
Switch Action	SPST
Warranty	1 Year
Product Height	5.25 in, 133 mm
Product Length	2.31 in, 59 mm
Product Width	4.25 in, 108 mm
