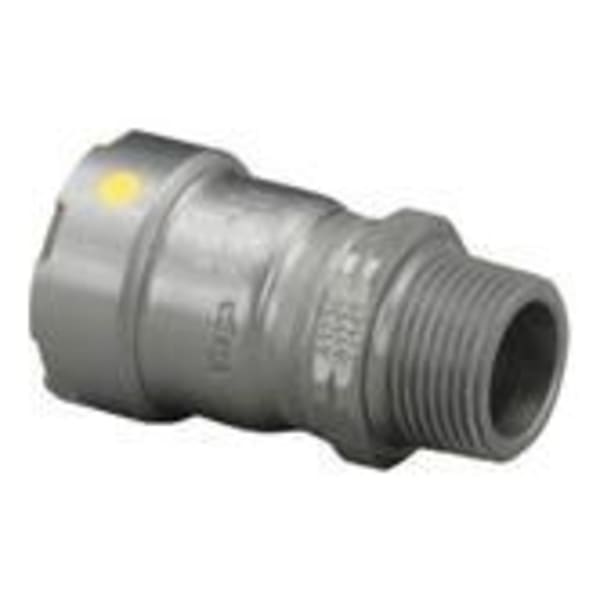

Viega 25121 1-1/2" x 1-1/2" - (P-MPT) - Male Adapter, MegaPress®G

Viega 25121 is a 1-1/2" MegaPressG male adapter, P x MPT (P = press end for IPS steel pipe; MPT = male pipe thread).

An adapter makes the change from press to a male pipe thread, for a valve, fixture connection or threaded equipment.

Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.

Specifications

• Brand: Viega
• Manufacturer Part #: 25121
• System: MegaPressG
• Size: 1-1/2"
• Type: Male Adapter
• Connections: P x MPT
• Material: Carbon steel, zinc-nickel coated
• Sealing element: HNBR (yellow)
• Operating pressure: 125 psi max on fuel gas
• Temperature: -40°F to 180°F
• Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
• Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
• UPC: 691514251219
• Shipping Weight: 1.069 lb
• Dimensions: 3.799 x 2.437 x 2.437 in (L x W x H)
• Category: Press Fittings - Gas
