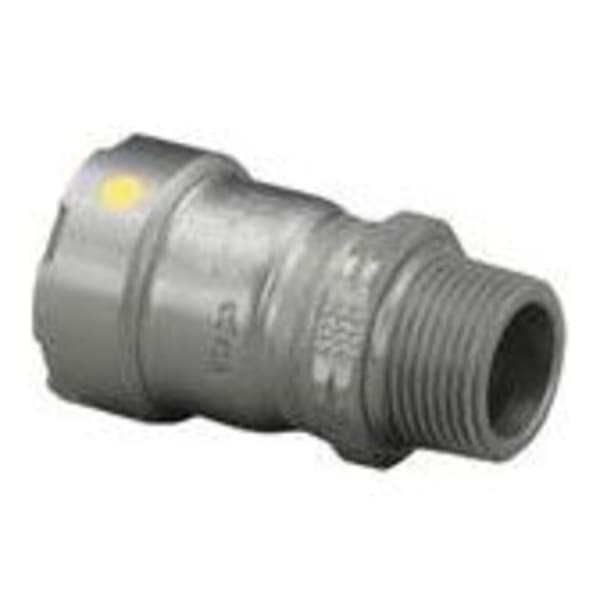

Viega 25111 is a 1" MegaPressG male adapter, P x MPT (P = press end for IPS steel pipe; MPT = male pipe thread).
An adapter makes the change from press to a male pipe thread, for a valve, fixture connection or threaded equipment.
Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 25111
-
System: MegaPressG
-
Size: 1"
-
Type: Male Adapter
-
Connections: P x MPT
-
Material: Carbon steel, zinc-nickel coated
-
Sealing element: HNBR (yellow)
-
Operating pressure: 125 psi max on fuel gas
-
Temperature: -40°F to 180°F
-
Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
-
Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
-
UPC: 691514251110
-
Shipping Weight: 0.474 lb
-
Dimensions: 3.004 x 1.78 x 1.78 in (L x W x H)
-
Category: Press Fittings - Gas
