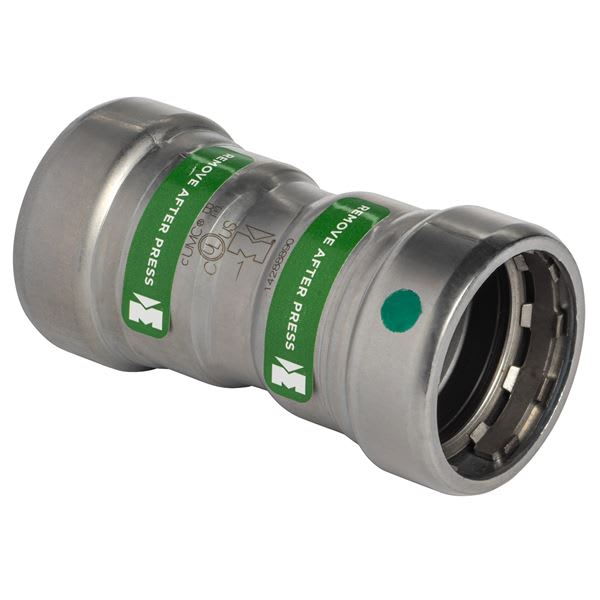

Mueller Streamline CP10148 1-1/4" Carbon Steel Press Fittings - Mechanical - Coupling - With Stop P x P

Mueller Streamline CP10148 is a 1-1/4" coupling with stop in carbon steel, P x P (P = press socket).

A coupling joins two lengths of the same size; the internal stop sets both at the same insertion depth.

Streamline STL carbon steel press fittings, with an EPDM sealing element, are for mechanical and fire sprinkler piping on Schedule 10 to 40 carbon steel pipe: hydronic heating, chilled water and similar closed systems. They are UL and FM listed and rated to 200 psi CWP. For fuel gas use the STL-G gas fittings instead.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: CP10148
• Size: 1-1/4"
• Type: Coupling With Stop
• Connections: P x P
• Material: Carbon steel, EPDM sealing element
• Standards: UL 213, FM Class 1920, ASTM F3226
• Operating pressure: 200 psi CWP
• Temperature: -40°F to 250°F
• Pipe: Schedule 10 to Schedule 40 carbon steel
• UPC: 685768446279
• Category: Press Fittings - Mechanical
