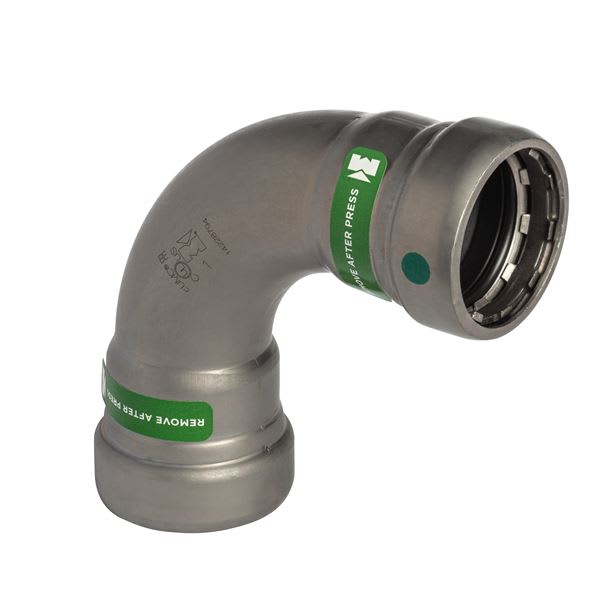

Mueller Streamline CP02722 1/2" Carbon Steel Press Fittings - Mechanical - 90 Degree Elbow P x P

Mueller Streamline CP02722 is a 1/2" 90 degree elbow in carbon steel, P x P (P = press socket).

A 90° elbow turns the line a quarter turn.

Streamline STL carbon steel press fittings, with an EPDM sealing element, are for mechanical and fire sprinkler piping on Schedule 10 to 40 carbon steel pipe: hydronic heating, chilled water and similar closed systems. They are UL and FM listed and rated to 200 psi CWP. For fuel gas use the STL-G gas fittings instead.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: CP02722
• Size: 1/2"
• Type: 90 Degree Elbow
• Connections: P x P
• Material: Carbon steel, EPDM sealing element
• Standards: UL 213, FM Class 1920, ASTM F3226
• Operating pressure: 200 psi CWP
• Temperature: -40°F to 250°F
• Pipe: Schedule 10 to Schedule 40 carbon steel
• UPC: 685768445364
• Category: Press Fittings - Mechanical
