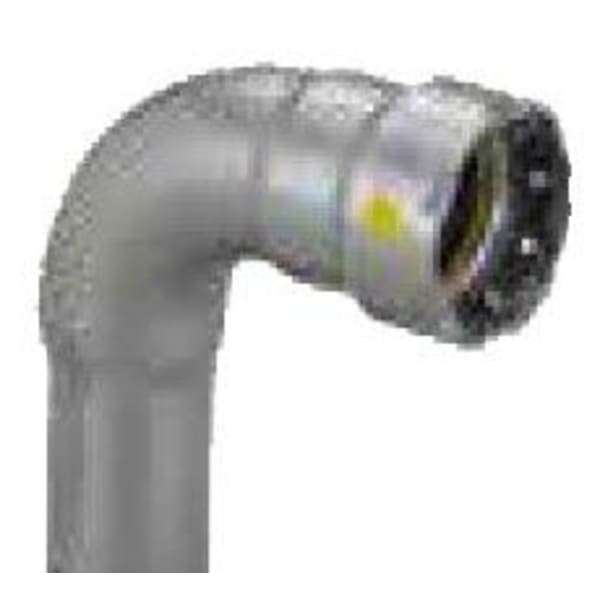

Viega 26066 1-1/4" x 1-1/4" - (P-FTG(IPS)) - 90 Deg Elbow (Street), MegaPress®G

Viega 26066 is a 1-1/4" MegaPressG 90 deg elbow (street), P x FTG(IPS) (P = press end for IPS steel pipe; FTG(IPS) = fitting-size end (iron pipe size), slides into another fitting).

A street elbow has one fitting-size end, so it goes straight into another fitting without a separate piece of tube, which makes the turn tighter and saves a joint.

Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.

Specifications

• Brand: Viega
• Manufacturer Part #: 26066
• System: MegaPressG
• Size: 1-1/4"
• Type: 90 Deg Elbow (Street)
• Connections: P x FTG(IPS)
• Material: Carbon steel, zinc-nickel coated
• Sealing element: HNBR (yellow)
• Operating pressure: 125 psi max on fuel gas
• Temperature: -40°F to 180°F
• Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
• Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
• UPC: 691514260662
• Shipping Weight: 1.3 lb
• Dimensions: 5.138 x 4.705 x 2.205 in (L x W x H)
• Category: Press Fittings - Gas
