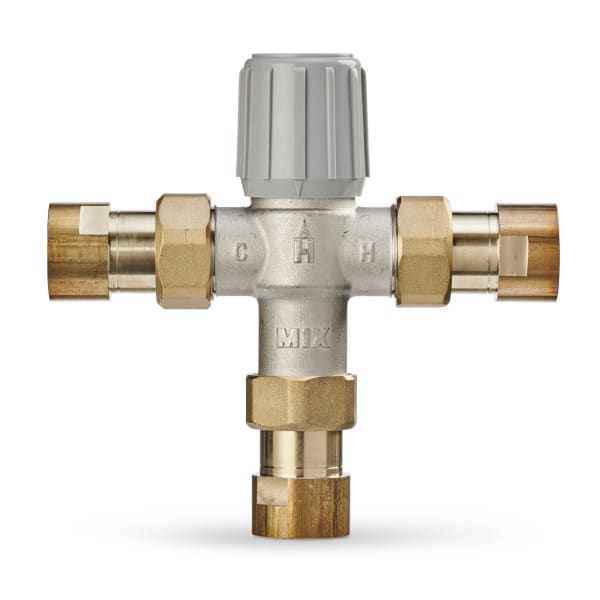

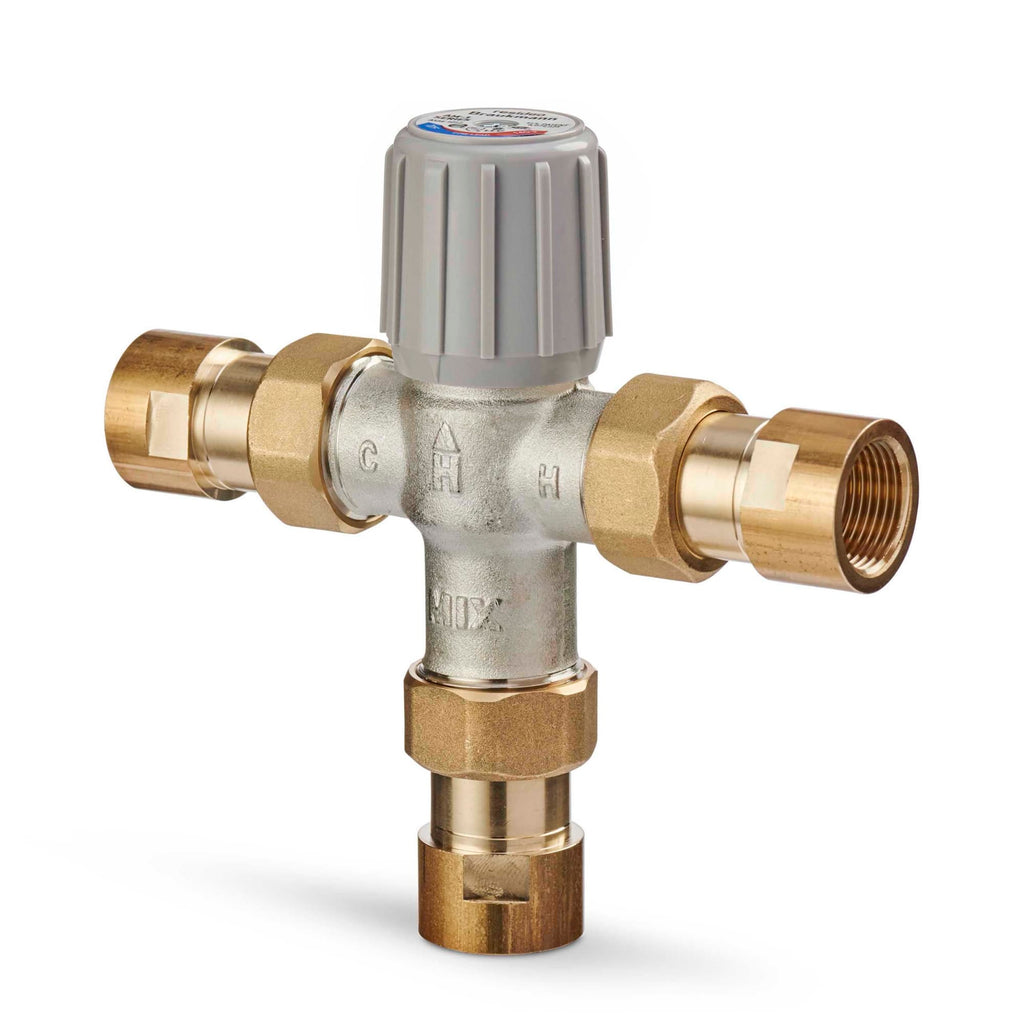

Resideo AM102-UT-1LF/U 1 in Union NPT Mixing Valve LF - STD
- Item #
- HONE-AM102-UT-1LF/U
- Mfr. part #
- AM102-UT-1LF/U
- UPC
- 085267338042
- Pipe Size1 in.
- ConnectionUnion NPT
- Valve TypeMixing Valves
- Capacity3.9 Cv
- Body materialEPDM O-rings
| Brand | Resideo |
| Manufacturer part # | AM102-UT-1LF/U |
| Pipe Size | 1 in. |
| Connection Type | Union NPT |
| Valve Type | Mixing Valves |
| Capacity (Cv) | 3.9 Cv |
| Fluid Temperature | Cold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 180 F; Mixed Outlet: 70 F to 145 F |
| Materials (Body) | Teflon-Coated, Nickle-Plated Low Lead Brass |
| Materials (Packing) | EPDM O-rings |
| Application | Heat Pump Systems; Domestic water; Nursing homes; Public facilities; Automatic faucets; Radiant floor heating; Space heating; Combo systems; Solar hot water; Greenhouses; Industrial applications; Photo processing |
| CSA | CSA Certified |
| Maximum Safe Operating Pressure (psi) | 150 psi |
| Approvals, Others | NSF/ANSI; IAPMO |
| Minimum flow rate (gpm) | 0.5 gpm |
| Minimum flow rate (lpm) | 1.9 lpm |
| Approvals, ASSE | 1017 |
| UPC | 085267338042 |
The AM102-UT-1LF is a lead-free thermostatic mixing valve from Resideo (Honeywell Home), 1 inch, NPT connection.
A mixing valve solves a problem that has no other answer: a water heater has to be kept hot enough to suppress bacterial growth in the tank, and that temperature is too hot to deliver to a tap. The valve blends stored hot water with cold on its way out, so the tank stays hot and the fixture does not.
Beyond safety, tempering buys capacity. A tank held hot and blended down delivers considerably more usable hot water than the same tank set to delivery temperature, because each gallon drawn is stretched with cold.
Lead free construction, as required for potable water in the United States.
Set the outlet temperature with a thermometer at the fixture, not by the dial alone, and re-check it after the system has settled. Inlet conditions move the mix, and a valve set on a cold line reads differently once the loop is up to temperature.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AM102-UT-1LF/U
- Type: Thermostatic mixing valve
- Size: 1 in
- Connection: NPT
- Lead free: Yes
- UPC: 085267338042
- Category: Mixing Valves
- Product Data for AM100C1070, AM101C1070, AM102C1070, AM-1 Series Proportional Thermostatic Mixing Valve (English) (0.6MB PDF)
- Installation instruction for AM-1 Series Mixing Valve Temperature Guage Adapter (English, French, Spanish) (1.1MB PDF)
- Installation Instructions for AM-1 Series Proportional Thermostatic Mixing and Diverting Valve (English, French, Spanish) (1.1MB PDF)
- Sell Sheet for AM-1 Series Thermostatic Mixing Valve (English) (1.1MB PDF)
- Sell sheet for AM-1 1070 Series Thermostatic Mixing Valve (English) (1.3MB PDF)
- Brochure for Homeowners for AMX 300 Thermostatic Mixing Valves (English) (1.8MB PDF)
- Brochure for the Hydronic Products with Press Fittings (English) (9.4MB PDF)
- Make Your Own Mixing Valve (English) (0.4MB PDF)
