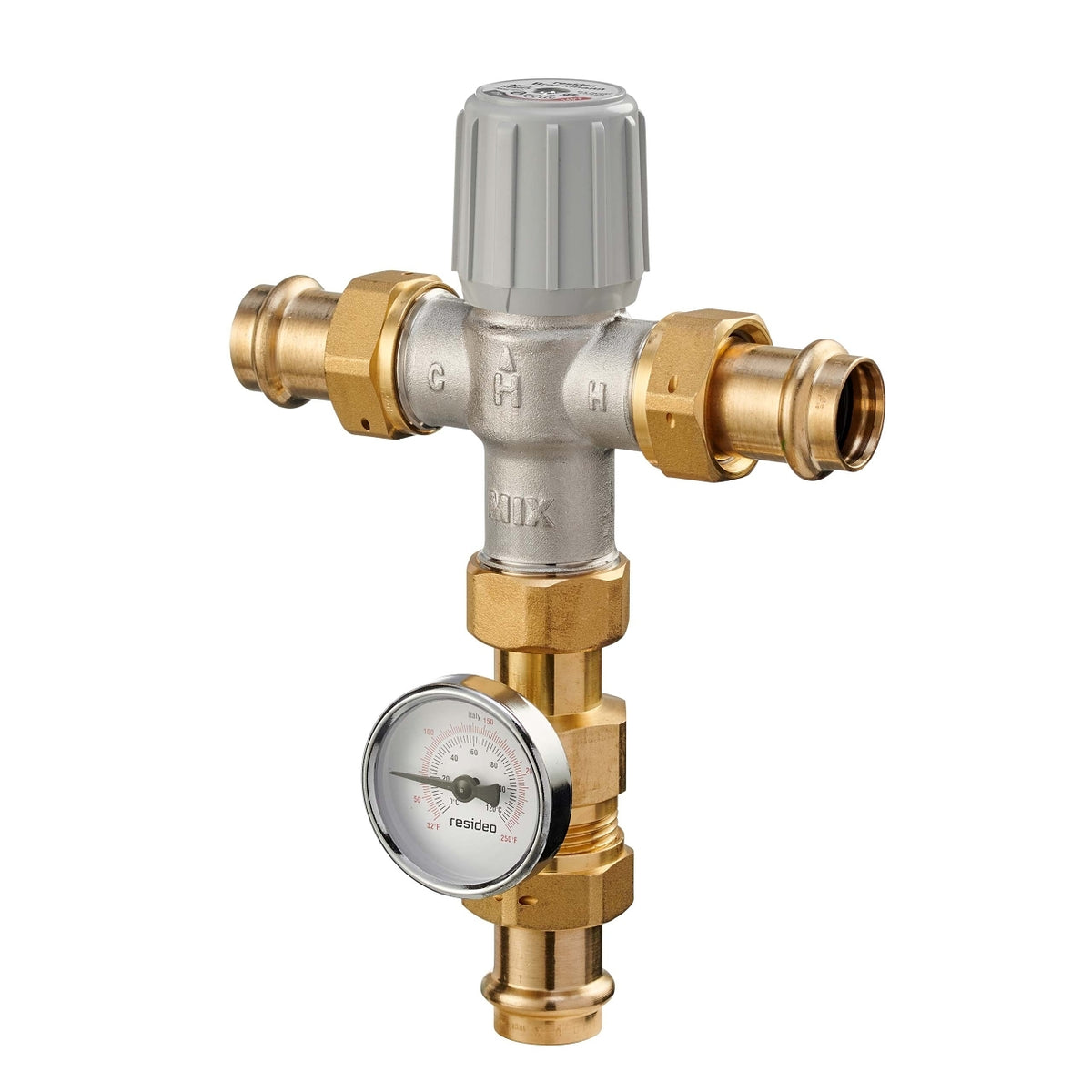

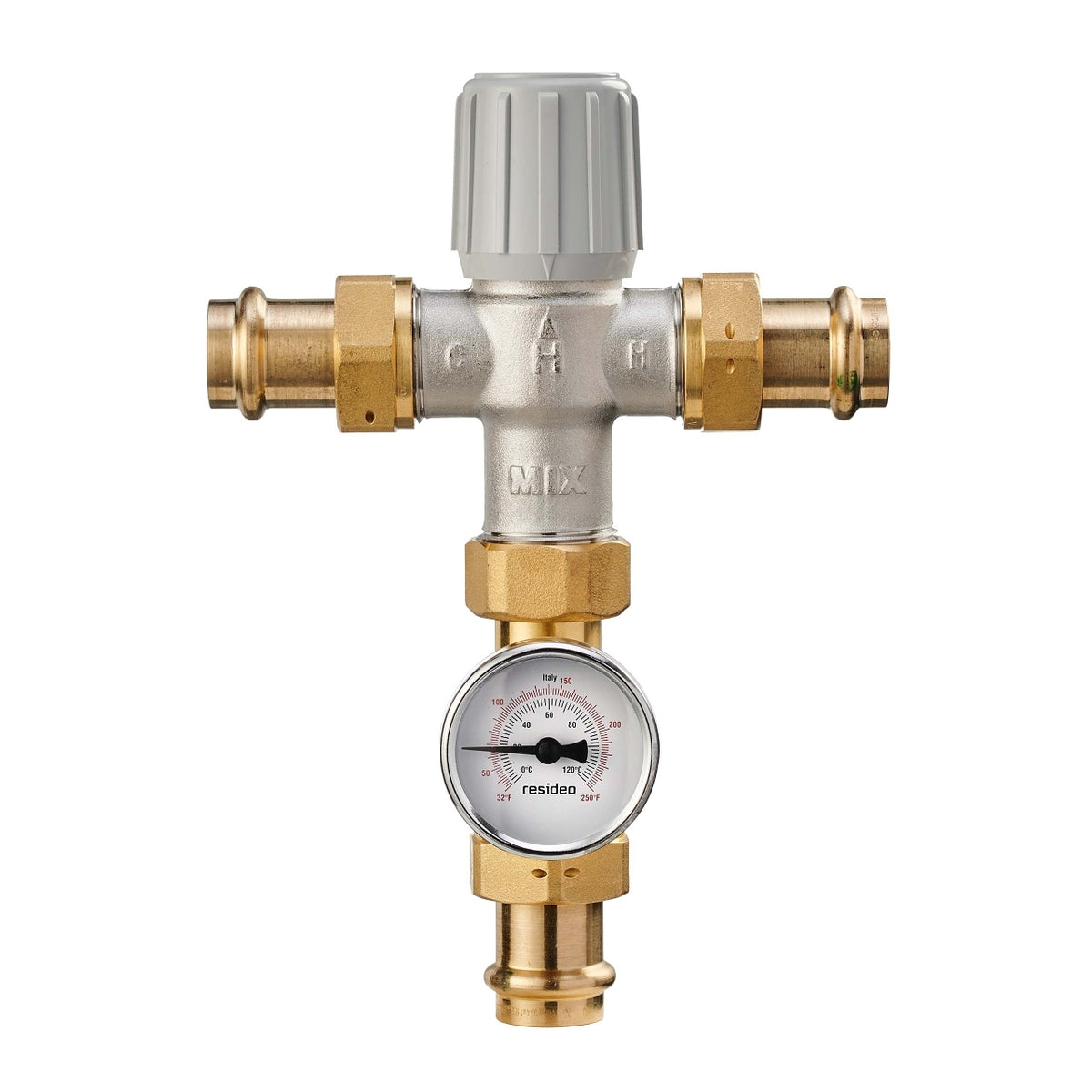

Resideo AM102-USTG-1LF/U Low Lead Thermostatic Mixing Valve, 1 in Union, Temperature Gauge, 70–145°F

1 in low lead thermostatic mixing valve with union connections, a temperature gauge and a 70–145°F range.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AM102-USTG-1LF/U
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: No
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• Product Height: 7.4 in, 188 mm
• Product Length: 6.5 in, 165 mm
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: Yes
• Media Temperature (Max): 212 °F, 100 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 145 °F, 63 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Accessories: AM102-SB/U, AM-1-025RP/U, AM1-TG102-US-LF/U
• Connection Size: 1 in
• Connection Type: Union Sweat with Temp Gauge
• Nominal Diameter: DN25
• Number of Connections: 3
• Valve Body Pattern: Straight Through
• UPC: 085267979429
• Country of Origin: MX
• Category: Mixing Valve - Lead Free - 1"
