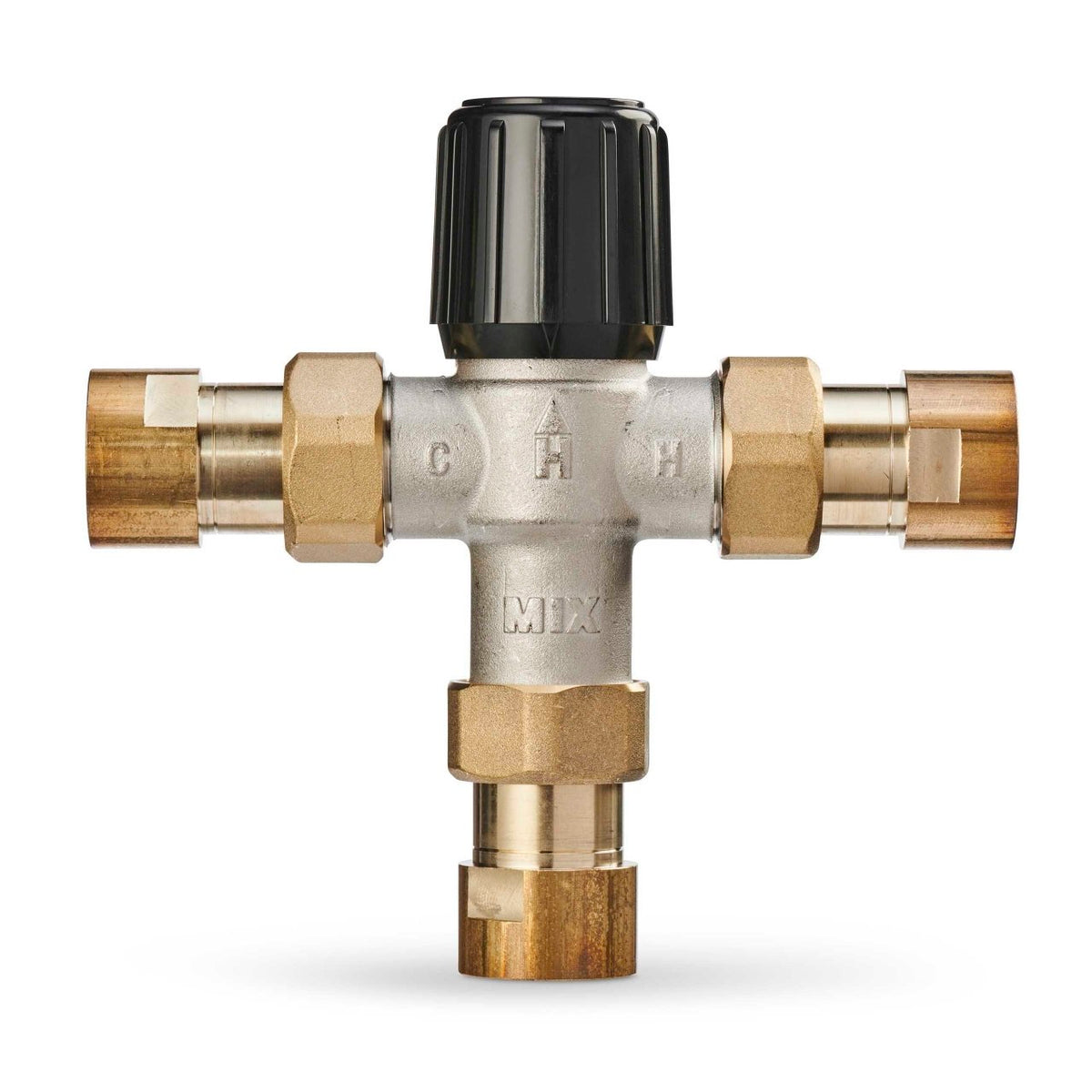

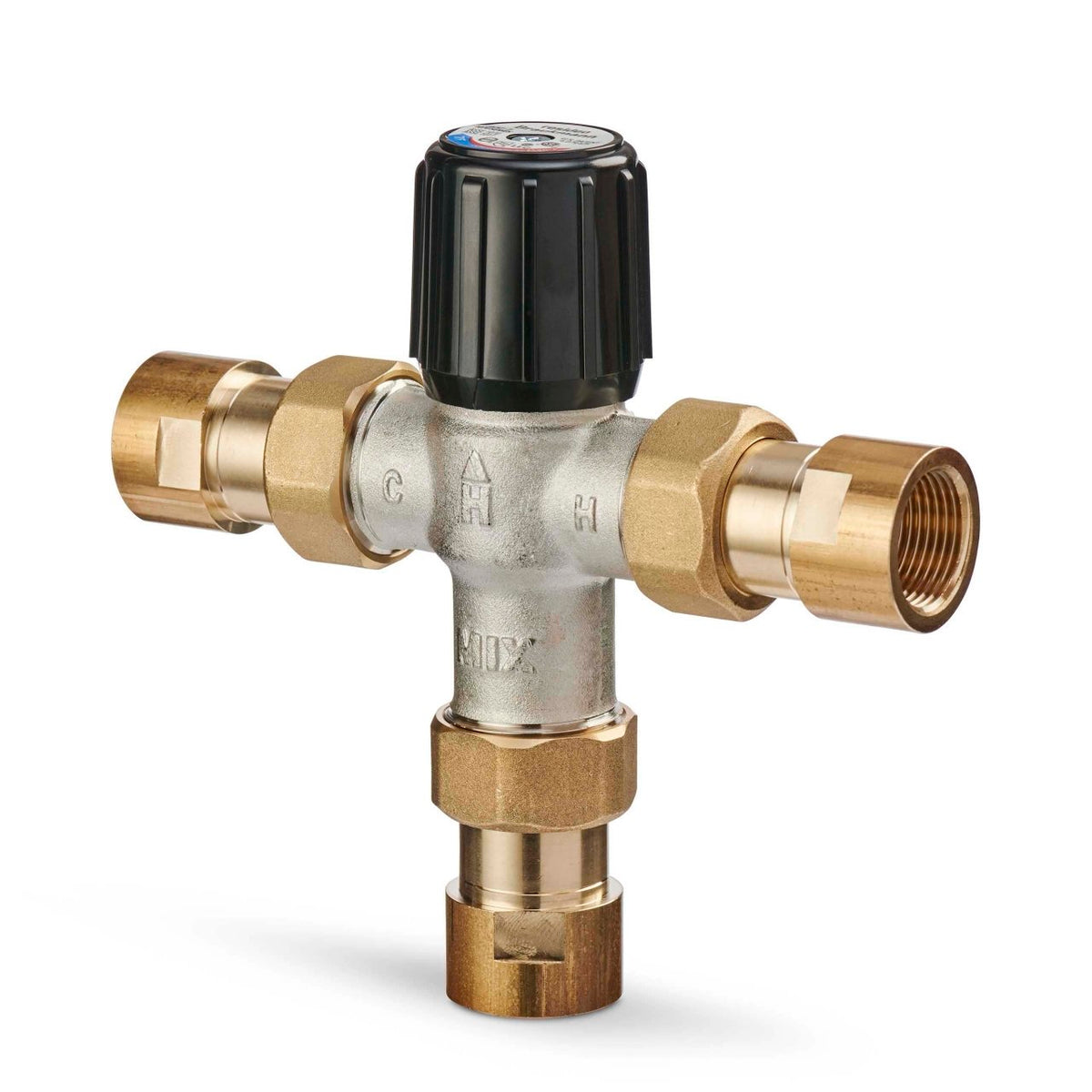

Resideo AM102C1070-UT-1LF AM-1 Lead Free Mixing Valve, Threaded Union, 80–120°F, ASSE 1070

AM-1 series lead free mixing valve with threaded union connections and an 80–120°F range, ASSE 1070.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AM102C1070-UT-1LF
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: No
• Approvals and Standards: ASSE 1017 Certified, ASSE 1070 Certified, CSA Listed, IAPMO Listed
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• Product Height: 6.8 in, 172.72 mm
• Product Length: 7 in, 178 mm
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 1.8 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: Yes
• Media Temperature (Max): 212 °F, 100 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 120 °F, 49 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Accessories: AM102-SB/U, AM-1-020RP/U, AM1-TG102-US-LF/U
• Connection Size: 1 in
• Connection Type: Union NPT
• Nominal Diameter: DN25
• Number of Connections: 3
• Valve Body Pattern: Straight Through
• UPC: 085267337960
• Country of Origin: MX
• Category: Mixing Valve - Lead Free - 1"
