1 in Union ProPress LF Mixing Valve R - Heat Only

Roll over image to zoom in Click on image to zoom

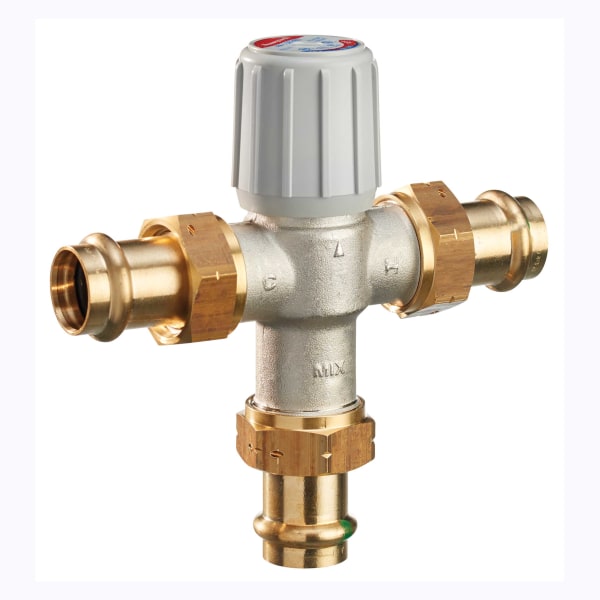

Resideo AM102R-UP-1/U 1 in Union ProPress LF Mixing Valve R - Heat Only

Name: Resideo AM102R-UP-1/U 1 in Union ProPress LF Mixing Valve R - Heat Only
Brand: Resideo
SKU: HONE-AM102R-UP-1/U
Price: 225.74 USD
Availability: InStock

ResideoSKU: HONE-AM102R-UP-1/U

Price:

$225.74

Stock:

Only 7 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Pipe Size	1 in.
Connection Type	Union ProPress
Valve Type	Mixing Valves
Capacity (Cv)	3.9 Cv
Operating Temperature	70 F to 180 F
Application	Domestic water; Nursing homes; Public facilities; Automatic faucets; Radiant floor heating; Space heating; Combo systems; Solar hot water; Greenhouses; Industrial applications; Photo processing
CSA	CSA Certified
Approvals, Others	NSF/ANSI; IAPMO
Approvals, ASSE	No Approval

The AM102R-UP-1 is a thermostatic mixing valve from Resideo (Honeywell Home) for hydronic heating service, 1 inch, ProPress connection.

A mixing valve solves a problem that has no other answer: a water heater has to be kept hot enough to suppress bacterial growth in the tank, and that temperature is too hot to deliver to a tap. The valve blends stored hot water with cold on its way out, so the tank stays hot and the fixture does not.

This is a heat-only valve. The R series is built for hydronic heating loops — radiant floor supply temperature, boiler protection, blending on a heating circuit. It is not for potable water service. Fitting a heat-only valve on domestic hot water puts a component outside its rating on the water people drink and bathe in. Check the model before ordering if the application is potable.

Union ProPress ends are pressed rather than soldered, and the unions mean the valve body still comes out without touching the pipe.

Set the outlet temperature with a thermometer at the fixture, not by the dial alone, and re-check it after the system has settled. Inlet conditions move the mix, and a valve set on a cold line reads differently once the loop is up to temperature.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: AM102R-UP-1/U
Type: Heat-only mixing valve (not for potable water)
Size: 1 in
Connection: ProPress
UPC: 085267607148
Category: Mixing Valves

Full Specifications

Controlled Media	Non Potable Water
Re-Circulation	No
Color	Metallic
Includes	Check Valves on Hot and Cold Inlets
Product Height	6.5 in, 165 mm
Product Length	6.7 in, 152 mm
Warranty	1 Year
Adjustment Means	Handwheel
Cold Inlet Temperature (Min)	39 °F, 27 °C
Cold Inlet Temperature (Max)	80 °F, 27 °C
Flex Connector Included	No
Flow Coefficient	3.9 Cv
Flow Rate (Min)	0.50 gpm, 1.9 lpm
Flow Rate (Max)	16 gpm, 60.6 lps
Hot Inlet Temperature (Min)	120 °F, 49 °C
Hot Inlet Temperature (Max)	180 °F, 82 °C
Lead Free	No
Media Temperature (Max)	212 °F, 100 °C
Number of Check Valves	2
Operating Mixing Temperature (Min)	70 °F, 21 °C
Operating Mixing Temperature (Max)	180 °F, 82 °C
Operating Pressure (Max)	150 psi, 1034 kPa
Seal Material	EPDM Rubber
Valve Body Material	Teflon-coated, Nickel-plated Brass
Connection Size	1 in
Connection Type	Union ProPress
Nominal Diameter	DN25
Number of Connections	3
Valve Body Pattern	Straight Through
