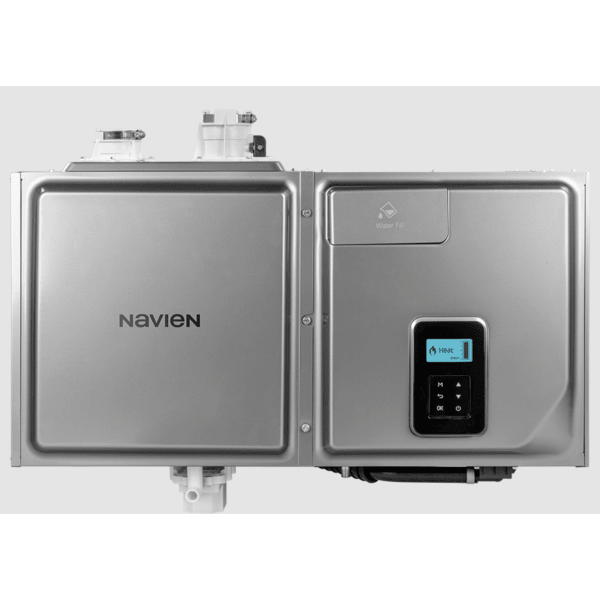

Navien NPF700-100H5CH Condensing Hydro Furnace, Horizontal, 14,000-100,000 BTU, NG/LP Convertible

Roll over image to zoom in Click on image to zoom

Navien NPF700-100H5CH Condensing Hydro Furnace, Horizontal, 14,000-100,000 BTU, NG/LP Convertible

Name: Navien NPF700-100H5CH Condensing Hydro Furnace, Horizontal, 14,000-100,000 BTU, NG/LP Convertible
Brand: Navien
SKU: NAVI-NPF700-100H5CH
Price: 3570.00 USD
Availability: InStock

NavienSKU: NAVI-NPF700-100H5CH

Price:

$3,570.00

Stock:

Only 2 units left

Quantity:

Ships by freight truck (LTL). Processed in 1–2 business days; the carrier may contact you to schedule delivery. Contiguous U.S. only.

Pricing a job? Get a written quote →Open a trade account

Questions? Call (404) 678-9908 or chat with us.

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Connection sizes (Gas inlet)	1/2" NPT
Connection sizes (Cold water inlet)	1/4" NPT
Connection sizes (Condensate outlet)	3/4" NPT
Natural gas supply pressure (from source)	3.5 " WC to 10.5 " WC
Propane gas supply pressure (from source)	8 " WC to 13 " WC
Natural gas manifold pressure (min-max)	-0.01 " WC to -0.02 " WC
Propane gas manifold pressure (min-max)	-0.01 " WC to -0.02 " WC
Power supply (Main supply)	120V AC, 60 Hz
Power supply (Max current)	14.3 Amps
Power supply (Circuit breaker)	20 Amps
Power supply (Wire size)	12 AWG
Venting (Exhaust)	2" or 3" PVC, CPVC, approved PP 2" or 3" special gas vent type BH (Class III, A/B/C) 2" or 3" SS
Venting (Intake)	2" or 3" PVC, CPVC, PP 2" or 3" special gas vent type BH (Class III, A/B/C) 2" or 3" SS
Venting (Vent clearances)	0" to combustibles
Dimensions	34.5" W x 21.0" H x 31.0" D
Materials (Casing)	Corrosion resistant baked on pre-painted steel
Materials (Combustion heat exchanger)	Stainless Steel
Materials (Hydronic heat exchanger)	Copper & Aluminum
Safety Devices	Flame rod, ignition operation detector, water temperature high limit switch, high limit sensor for exhaust temperature, Vent Installation Detector (VID), water level sensor, burner high limit sensor, Pressure Relief Valve (PRV), leak sensor
Gas input (Space heating)	14,000 - 100,000 BTU/h
Shipping weight	167.6 lbs
Heating	0.1 - 0.8 " WC

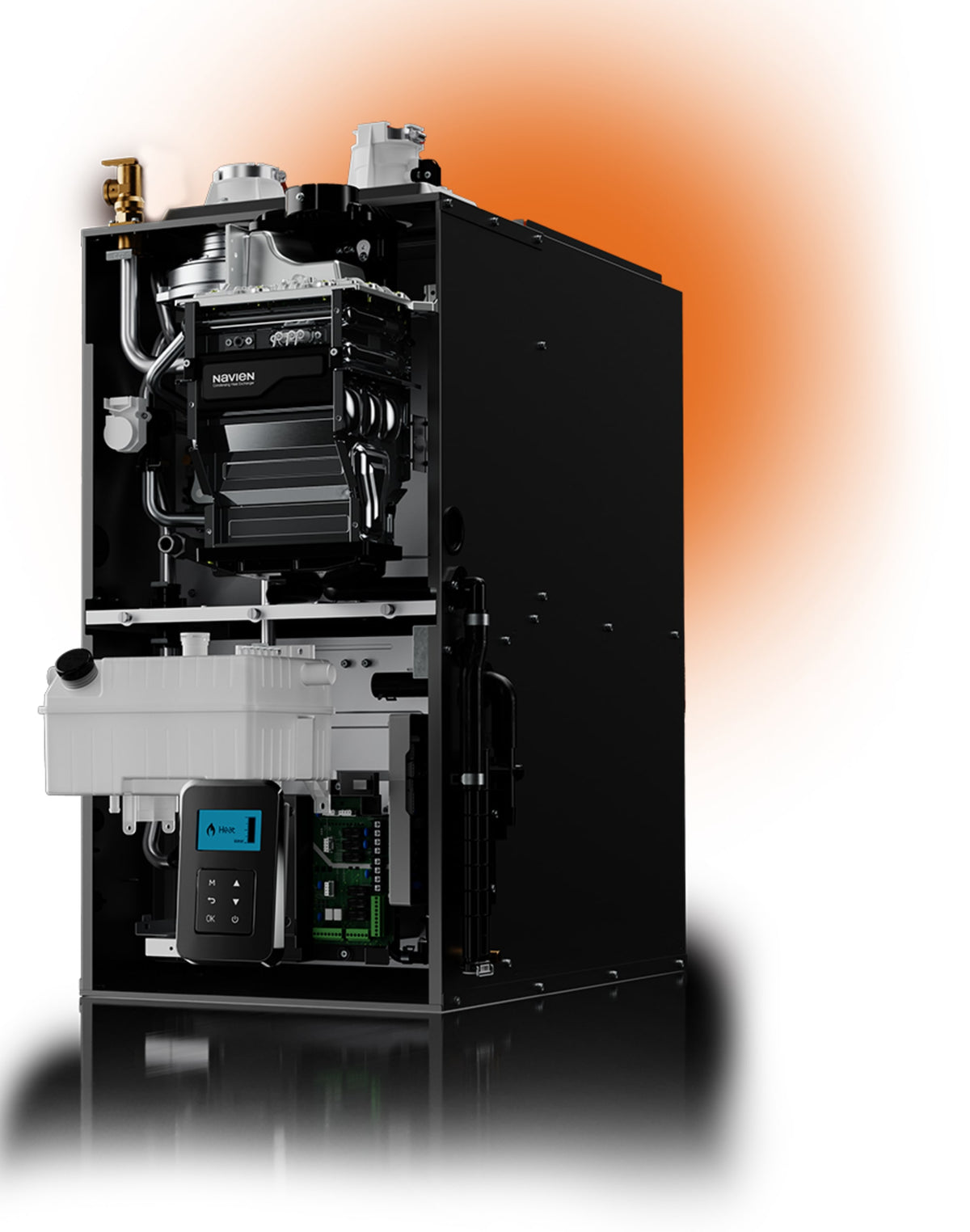

The Navien NPF700-100H5CH is a condensing hydro furnace in the horizontal configuration with a gas input of 14,000 - 100,000 BTU/h. It burns gas in a sealed stainless steel combustion heat exchanger located outside the airstream, then pumps the heated water through a copper and aluminum hydronic coil that warms the air.

Key features

97% AFUE with a modulating burner (15-100% variable capacity)
Adjustable discharge air temperature from 95 to 150°F
High-efficiency variable-speed ECM blower, rated for airflow up to 1.0" ESP
Field convertible from natural gas to propane; LP conversion kit and high-altitude kit (up to 10,100 ft) included
Works with single- or two-stage thermostats
Cleanable external condensate trap, convertible left or right

Specifications

Brand: Navien
Manufacturer part number: NPF700-100H5CH
Configuration: Horizontal
Gas input (heating): 14,000 - 100,000 BTU/h
AFUE: 97%
Airflow: Max heat 1,200 - 2,000 CFM; min heat 500 - 2,000 CFM; cooling 2,000 CFM
Nominal cooling capacity: 2.0 - 5.0 ton at 400 CFM/ton; 2.0 - 5.5 ton at 350 CFM/ton
Blower: 12.0" D x 12.0" W, 1.0 HP variable-speed ECM, 11.0 motor full load amps
External static pressure (heating): 0.1 - 0.8" WC
Gas supply pressure: Natural gas 3.5 - 10.5" WC; propane 8 - 13" WC
Connections: 1/2" NPT gas inlet; 1/4" NPT cold water inlet; 3/4" NPT condensate outlet
Power supply: 120V AC, 60 Hz; 14.3 A max current; 20 A breaker; 12 AWG wire
Venting: Forced draft, direct or non-direct vent; 2" or 3" PVC, CPVC, PP or stainless steel; max vent length 70 ft (2") or 140 ft (3"); 0" clearance to combustibles
Dimensions: 34.5" W x 21.0" H x 31.0" D
Shipping weight: 167.6 lb

Manufacturer's warranty

Navien lists, for residential use: limited lifetime on the combustion heat exchanger and 10 years on parts when registered within 60 days (20 years and 5 years if not registered), and 1 year on labor. See Navien's warranty document for full terms.

Gas, venting and electrical connections must be made by a licensed installer following the manufacturer's installation manual and local codes.
