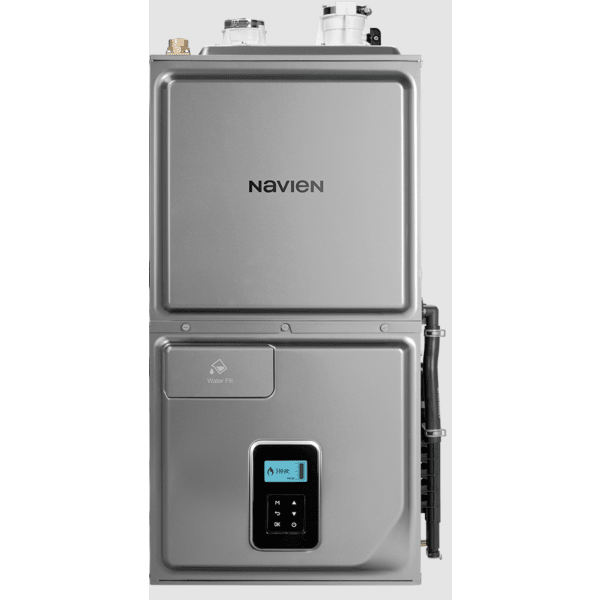

Navien 9,000-60,000 Btu Condensing Hydro Furnace Upflow Unit
Navien

Navien NPF700-060U3BH Condensing Hydro Furnace, Upflow, 9,000-60,000 BTU, NG/LP Convertible

Item #
NAVI-NPF700-060U3BH
Mfr. part #
NPF700-060U3BH

Key specifications
  • Connection sizes1/2" NPT
  • Power supply120V AC, 60 Hz
  • Venting0" to combustibles
  • Gas input9,000 - 60,000 BTU/h
  • Shipping weight145 lbs
View all specifications
$2,822.40
Each
In stock – 1 available
Estimated delivery: –

Usually ships in 1–2 business days.

Ships UPS Ground for a flat $189 (continental US).
Flat rate by order weight: $119 under 70 lb · $149 for 70–100 lb · $189 for 100–150 lb.

Pricing a job? Get a written quote →Open a trade account

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandNavien
Manufacturer part #NPF700-060U3BH
Connection sizes (Gas inlet)1/2" NPT
Connection sizes (Cold water inlet)1/4" NPT
Connection sizes (Condensate outlet)3/4" NPT
Natural gas supply pressure (from source)3.5 " WC to 10.5 " WC
Propane gas supply pressure (from source)8 " WC to 13 " WC
Natural gas manifold pressure (min-max)-0.01 " WC to -0.02 " WC
Propane gas manifold pressure (min-max)-0.01 " WC to -0.02 " WC
Power supply (Main supply)120V AC, 60 Hz
Power supply (Max current)10.9 Amps
Power supply (Circuit breaker)15 Amps
Power supply (Wire size)14 AWG
Venting (Exhaust)2" or 3" PVC, CPVC, approved PP 2" or 3" special gas vent type BH (Class III, A/B/C) 2" or 3" SS
Venting (Intake)2" or 3" PVC, CPVC, PP 2" or 3" special gas vent type BH (Class III, A/B/C) 2" or 3" SS
Venting (Vent clearances)0" to combustibles
Dimensions17.5" W x 34.5" H x 31.0" D
Materials (Casing)Corrosion resistant baked on pre-painted steel
Materials (Combustion heat exchanger)Stainless Steel
Materials (Hydronic heat exchanger)Copper & Aluminum
Safety DevicesFlame rod, ignition operation detector, water temperature high limit switch, high limit sensor for exhaust temperature, Vent Installation Detector (VID), water level sensor, burner high limit sensor, Pressure Relief Valve (PRV), leak sensor
Gas input (Space heating)9,000 - 60,000 BTU/h
Shipping weight145 lbs
Heating0.1 - 0.8 " WC

The Navien NPF700-060U3BH is a condensing hydro furnace in the upflow configuration with a gas input of 9,000 - 60,000 BTU/h. It burns gas in a sealed stainless steel combustion heat exchanger located outside the airstream, then pumps the heated water through a copper and aluminum hydronic coil that warms the air.

Key features

  • 97% AFUE with a modulating burner (15-100% variable capacity)
  • Adjustable discharge air temperature from 95 to 150°F
  • High-efficiency variable-speed ECM blower, rated for airflow up to 1.0" ESP
  • Field convertible from natural gas to propane; LP conversion kit and high-altitude kit (up to 10,100 ft) included
  • Works with single- or two-stage thermostats
  • Cleanable external condensate trap, convertible left or right

Specifications

  • Brand: Navien
  • Manufacturer part number: NPF700-060U3BH
  • Configuration: Upflow
  • Gas input (heating): 9,000 - 60,000 BTU/h
  • AFUE: 97%
  • Airflow: Max heat 720 - 1,200 CFM; min heat 450 - 1,200 CFM; cooling 1,200 CFM
  • Nominal cooling capacity: 1.5 - 3.0 ton at 400 CFM/ton; 1.5 - 3.5 ton at 350 CFM/ton
  • Blower: 12.0" D x 10.0" W, 1.0 HP variable-speed ECM, 7.6 motor full load amps
  • External static pressure (heating): 0.1 - 0.8" WC
  • Gas supply pressure: Natural gas 3.5 - 10.5" WC; propane 8 - 13" WC
  • Connections: 1/2" NPT gas inlet; 1/4" NPT cold water inlet; 3/4" NPT condensate outlet
  • Power supply: 120V AC, 60 Hz; 10.9 A max current; 15 A breaker; 14 AWG wire
  • Venting: Forced draft, direct or non-direct vent; 2" or 3" PVC, CPVC, PP or stainless steel; max vent length 70 ft (2") or 140 ft (3"); 0" clearance to combustibles
  • Dimensions: 17.5" W x 34.5" H x 31.0" D
  • Shipping weight: 145 lb

Manufacturer's warranty

Navien lists, for residential use: limited lifetime on the combustion heat exchanger and 10 years on parts when registered within 60 days (20 years and 5 years if not registered), and 1 year on labor. See Navien's warranty document for full terms.

Gas, venting and electrical connections must be made by a licensed installer following the manufacturer's installation manual and local codes.

NPF700 Technical Data Sheet (PDF)NPF Return Air Box Kit Spec Sheet (PDF)NPF Installation and Operation Manual (PDF)NPF Return Air Box Kit Installation Guide (PDF)

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
