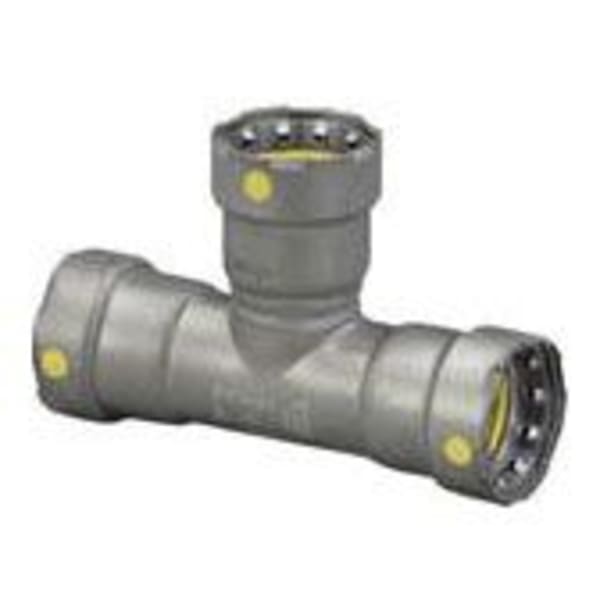

Viega 25396 is a 2" x 2" x 1-1/4" MegaPressG tee, P x P x P (P = press end for IPS steel pipe).
A reducing tee: the first two figures are the run (2" and 2") and the last is the branch (1-1/4").
Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 25396
-
System: MegaPressG
-
Size: 2" x 2" x 1-1/4"
-
Type: Tee
-
Connections: P x P x P
-
Material: Carbon steel, zinc-nickel coated
-
Sealing element: HNBR (yellow)
-
Operating pressure: 125 psi max on fuel gas
-
Temperature: -40°F to 180°F
-
Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
-
Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
-
UPC: 691514253961
-
Shipping Weight: 2.646 lb
-
Dimensions: 7.547 x 5.051 x 2.894 in (L x W x H)
-
Category: Press Fittings - Gas
See also: all MegaPressG fittings, press tools, MegaPress water fittings, all Viega.
