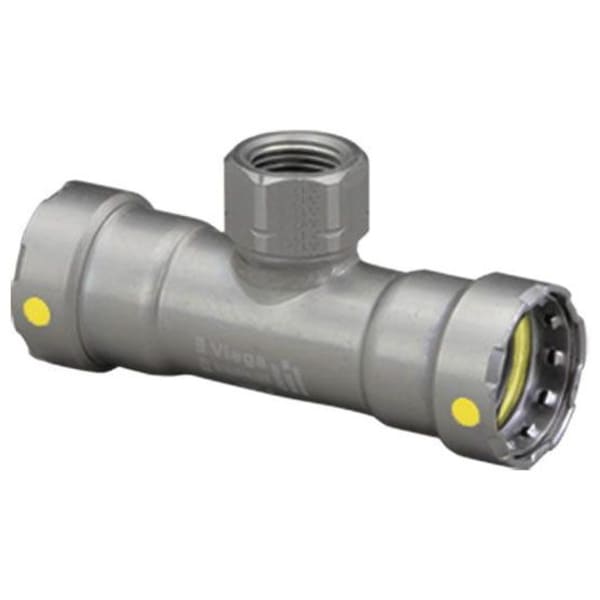

Viega 25456 is a 2" x 2" x 1/2" MegaPressG tee (adapter), P x P x FPT (P = press end for IPS steel pipe; FPT = female pipe thread).
An adapter tee has press ends on the run and a female threaded branch, for a gauge, drain, valve or threaded take-off.
Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 25456
-
System: MegaPressG
-
Size: 2" x 2" x 1/2"
-
Type: Tee (Adapter)
-
Connections: P x P x FPT
-
Material: Carbon steel, zinc-nickel coated
-
Sealing element: HNBR (yellow)
-
Operating pressure: 125 psi max on fuel gas
-
Temperature: -40°F to 180°F
-
Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
-
Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
-
UPC: 691514254562
-
Shipping Weight: 2.359 lb
-
Dimensions: 7.547 x 3.685 x 2.894 in (L x W x H)
-
Category: Press Fittings - Gas
