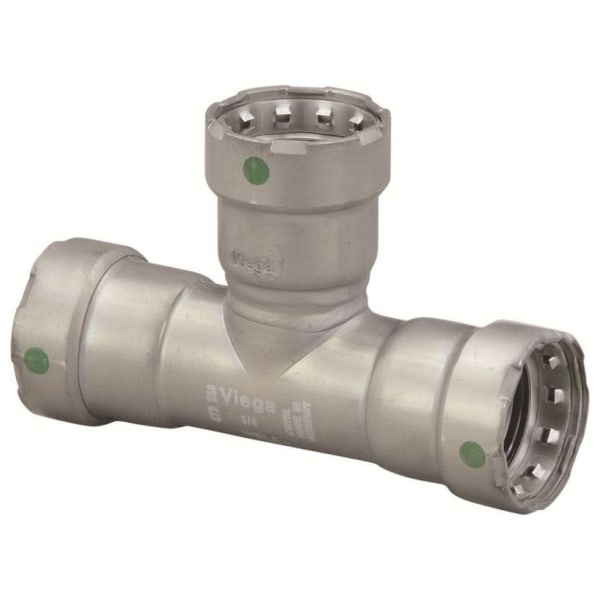

Viega 25390 is a 2" x 2" x 1" MegaPress tee (reducing), P x P x P (P = press end for IPS steel pipe).
A reducing tee: the first two figures are the run (2" and 2") and the last is the branch (1").
Viega MegaPress presses directly onto black iron / carbon steel pipe, so steel lines go together without threading, welding or grooving. The EPDM version is for closed water systems such as hydronic heating and chilled water, and for compressed air. For natural gas or propane use MegaPressG.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 25390
-
System: MegaPress
-
Size: 2" x 2" x 1"
-
Type: Tee (Reducing)
-
Connections: P x P x P
-
Material: Carbon steel, zinc-nickel coated
-
Sealing element: EPDM
-
Operating pressure: 200 psi max
-
Temperature: 0°F to 250°F
-
Pipe: IPS carbon steel, Schedule 5 to 40 (ASTM A53, A106, A135, A795)
-
Listings: IAPMO Z1117, ASTM F3226
-
UPC: 691514253909
-
Shipping Weight: 2.513 lb
-

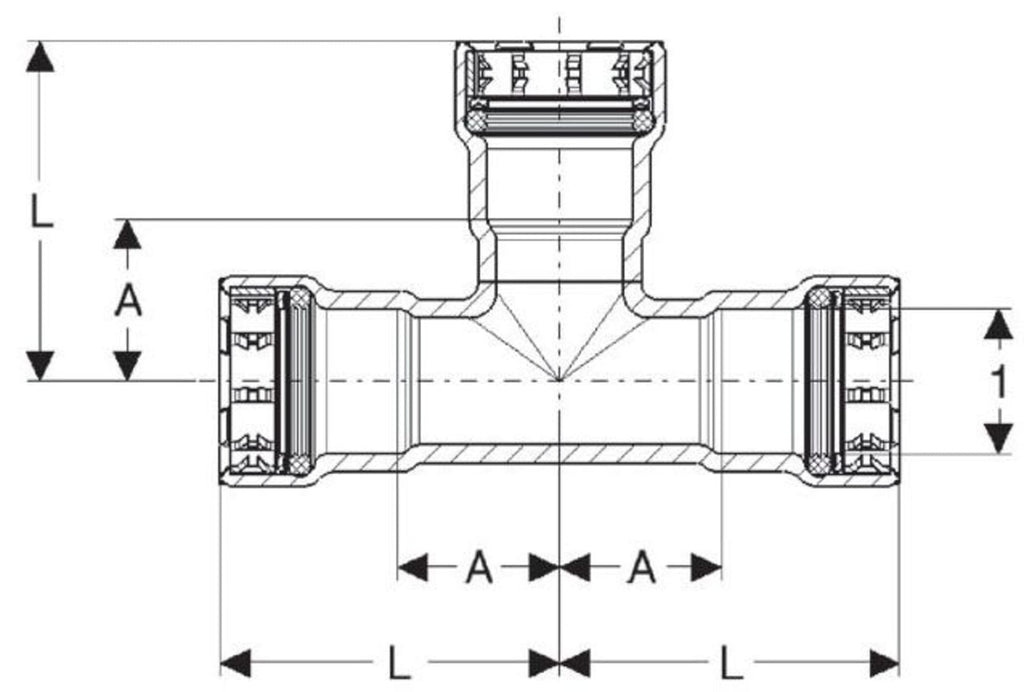

Dimensions: 7.547 x 4.547 x 2.894 in (L x W x H)
-
Category: Press Fittings - Mechanical
