3/4 in NPT Mixing Valve LF C
Resideo

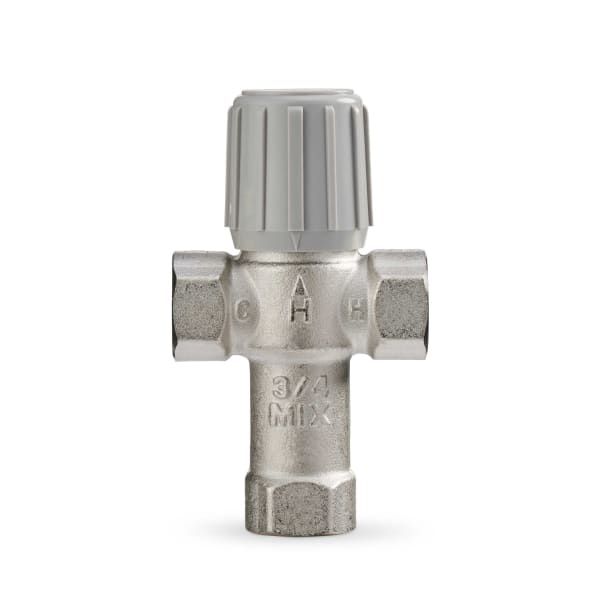

Resideo AM101C-1LF/U 3/4 in NPT Mixing Valve LF C

Item #
HONE-AM101C-1LF/U
Mfr. part #
AM101C-1LF/U
UPC
085267337724
Key specifications
  • Pipe Size3/4 in.
  • ConnectionNPT
  • Valve TypeMixing Valves
  • Capacity3.8 Cv
  • Body materialEPDM O-rings
View all specifications
$166.21
Each
In stock – 6 available
Estimated delivery: –

Usually ships in 1–2 business days.

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #AM101C-1LF/U
Pipe Size3/4 in.
Connection TypeNPT
Valve TypeMixing Valves
Capacity (Cv)3.8 Cv
Fluid TemperatureCold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 180 F; Mixed Outlet: 70 F to 120 F
Materials (Body)Teflon-Coated, Nickle-Plated Low Lead Brass
Materials (Packing)EPDM O-rings
ApplicationScald prevention in Domestic water; Nursing homes; Public facilities; Automatic faucets; Industrial applications; Photo processing
CSACSA Certified
Maximum Safe Operating Pressure (psi)150 psi
Approvals, OthersNSF/ANSI; IAPMO
Minimum flow rate (gpm)0.5 gpm
Minimum flow rate (lpm)1.9 lpm
Approvals, ASSE1017
UPC085267337724

The AM101C-1LF is a lead-free thermostatic mixing valve from Resideo (Honeywell Home), 3/4 inch, NPT connection.

A mixing valve solves a problem that has no other answer: a water heater has to be kept hot enough to suppress bacterial growth in the tank, and that temperature is too hot to deliver to a tap. The valve blends stored hot water with cold on its way out, so the tank stays hot and the fixture does not.

Beyond safety, tempering buys capacity. A tank held hot and blended down delivers considerably more usable hot water than the same tank set to delivery temperature, because each gallon drawn is stretched with cold.

Lead free construction, as required for potable water in the United States.

Set the outlet temperature with a thermometer at the fixture, not by the dial alone, and re-check it after the system has settled. Inlet conditions move the mix, and a valve set on a cold line reads differently once the loop is up to temperature.

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: AM101C-1LF/U
  • Type: Thermostatic mixing valve
  • Size: 3/4 in
  • Connection: NPT
  • Lead free: Yes
  • Shipping weight: 7.8 lb
  • Category: Mixing Valves

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$166.21
In stock
