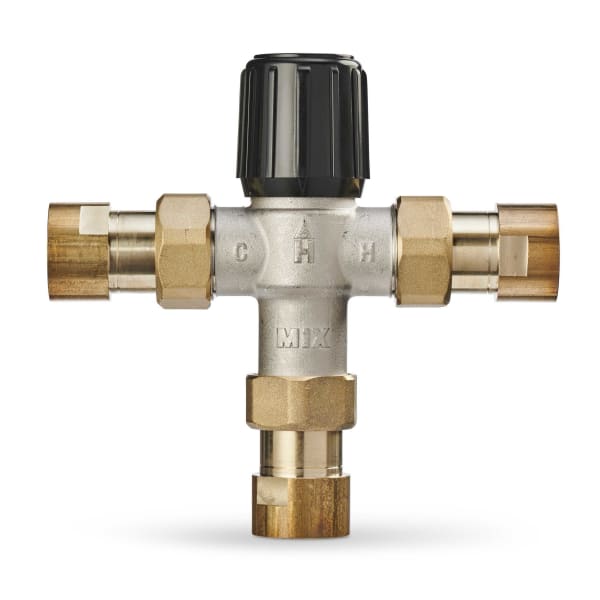

3/4 in Union NPT Mixing Valve LF 1070
Resideo

Resideo AM101C1070-UT-1LF 3/4 in Union NPT Mixing Valve LF 1070

Item #
HONE-AM101C1070-UT-1LF
Mfr. part #
AM101C1070-UT-1LF
UPC
085267337779
Key specifications
  • Pipe Size3/4 in.
  • ConnectionUnion NPT
  • Valve TypeMixing Valves
  • Capacity1.8 Cv
  • Body materialEPDM O-rings
View all specifications
$189.66
Each
In stock – 1 available
Estimated delivery: –

Usually ships in 1–2 business days.

Replaces: AM101C-UT-1, AM101C-UT-1LF, AM101C1070-UT-1

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.7 lb
  • Box size: 6.05 × 3.8 × 3.65 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #AM101C1070-UT-1LF
Pipe Size3/4 in.
Connection TypeUnion NPT
Valve TypeMixing Valves
Capacity (Cv)1.8 Cv
Fluid TemperatureCold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 180 F; Mixed Outlet: 70 F to 120 F
Materials (Body)Teflon-Coated, Nickle-Plated Low Lead Brass
Materials (Packing)EPDM O-rings
ApplicationScald prevention in Domestic water; Nursing homes; Public facilities; Automatic faucets; Industrial applications; Photo processing
CSACSA Certified
Maximum Safe Operating Pressure (psi)150 psi
Approvals, OthersNSF/ANSI; IAPMO
Minimum flow rate (gpm)0.5 gpm
Minimum flow rate (lpm)1.9 lpm
Approvals, ASSE1017 and 1070
UPC085267337779

The AM101C1070-UT-1LF is a lead-free thermostatic mixing valve from Resideo (Honeywell Home), 3/4 inch, NPT connection.

A mixing valve solves a problem that has no other answer: a water heater has to be kept hot enough to suppress bacterial growth in the tank, and that temperature is too hot to deliver to a tap. The valve blends stored hot water with cold on its way out, so the tank stays hot and the fixture does not.

Beyond safety, tempering buys capacity. A tank held hot and blended down delivers considerably more usable hot water than the same tank set to delivery temperature, because each gallon drawn is stretched with cold.

The 1070 designation marks the point-of-use range, intended for tempering at or near the fixture rather than at the heater. Confirm the listed standard against what your jurisdiction requires for the application — point-of-use and whole-house tempering are held to different listings.

Lead free construction, as required for potable water in the United States.

Set the outlet temperature with a thermometer at the fixture, not by the dial alone, and re-check it after the system has settled. Inlet conditions move the mix, and a valve set on a cold line reads differently once the loop is up to temperature.

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: AM101C1070-UT-1LF
  • Type: Thermostatic mixing valve
  • Size: 3/4 in
  • Connection: NPT
  • Series: 1070 point-of-use
  • Lead free: Yes
  • UPC: 085267337779
  • Shipping weight: 1.5 lb
  • Category: Mixing Valves
