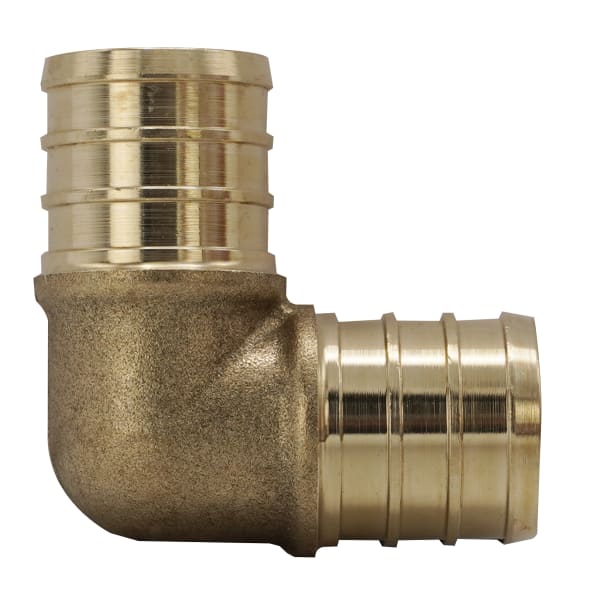

Sioux Chief 642XG3 is a 3/4" x 3/4" PEX F1807 90 degree elbow in no-lead (NL/DZR) brass.
Use it where PEX needs a tight 90 degree turn that is shorter than the tube's minimum bend radius allows. F1807 joints are made on SDR9 PEX tube with a copper crimp ring or a stainless V-Sleeve compression sleeve and the matching crimp or compression tool.
Tube stops are formed into the fitting. Match the connection standard (F1807 crimp, F1960 expansion or F2159 poly crimp) to the PEX tube, rings and tools already on the job before ordering.
Specifications
-
Brand: Sioux Chief
-
Manufacturer Part #: 642XG3
-
Connections: 3/4" F1807 crimp x 3/4" F1807 crimp
-
Material: No-lead (NL/DZR) brass
-
Standards: ASTM F877, ASTM F1807, CSA B137.5
-
UPC: 739236408709
-
Category: F1807 Crimp Fittings
See also: F1807 crimp fittings, PEX fittings, all Sioux Chief.
