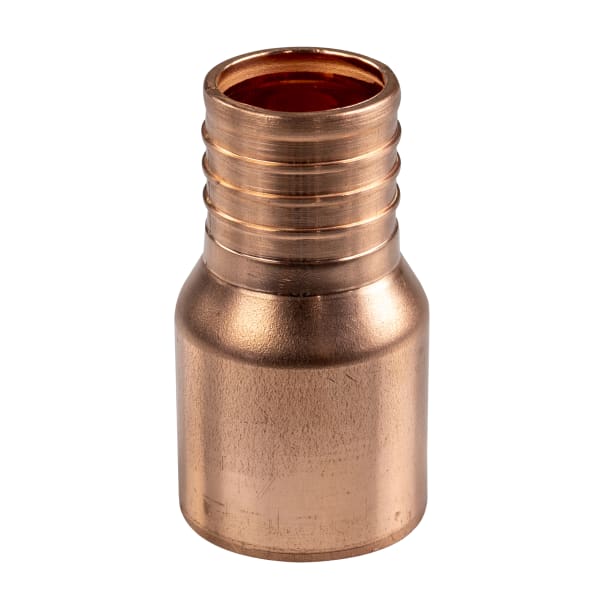

Sioux Chief 643X3 is a 3/4" F1807 crimp x 3/4" male sweat (MSWT) straight adapter in copper.
The male sweat end is fitting-size copper: it solders into a copper fitting socket, so it transitions a PEX line into existing copper fittings and valves. F1807 joints are made on SDR9 PEX tube with a copper crimp ring or a stainless V-Sleeve compression sleeve and the matching crimp or compression tool.
Match the connection standard (F1807 crimp, F1960 expansion or F2159 poly crimp) to the PEX tube, rings and tools already on the job before ordering.
Specifications
-
Brand: Sioux Chief
-
Manufacturer Part #: 643X3
-
Connections: 3/4" F1807 crimp x 3/4" male sweat (MSWT)
-
Material: Copper
-
Standards: ASTM F1807, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61
-
UPC: 739236481849
-
Category: F1807 Crimp Fittings
-
Shipping Weight: 0.052 lb
