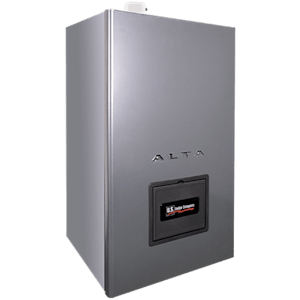

The U.S. Boiler (Burnham) Alta ALTA-120 is a 120,000 BTU/h input, wall-hung, high-efficiency condensing gas boiler for heat-only hydronic systems, rated for altitudes from 0 to 10,000 ft. It has a stainless steel heat exchanger and U.S. Boiler's OneTouch control.
Key features
- OneTouch control: about a 5-minute commissioning, sets combustion automatically and converts to LP without extra kits
- Modulates by firing rate without an outdoor reset sensor (outdoor sensor not required)
- 10:1 turndown
- High-altitude operation with zero or minimal derate
- Works at low gas pressure: 2.5 in. w.c. natural gas, 8.0 in. w.c. LP
- Wall-hung, with three-side service access; floor stand available
Specifications
-
Brand: U.S. Boiler Company (Burnham)
-
Manufacturer part number: ALTA-120-1G00
-
Input: 120,000 BTU/h maximum
-
Efficiency: 95% (ENERGY STAR rated, AHRI certified)
-
Fuel: Natural gas or propane
-
Elevation: 0-10,000 ft
-
Heat exchanger: Stainless steel
-
Circulator: Grundfos boiler pump included
-
Gas inlet: 1/2"
-
Heating supply / return: 1-1/4" / 1-1/4"
-
Venting: 2" vent; CPVC, polypropylene or PVC per the venting instructions
-
Safety: Boiler flow safety switch (UL 353)
-
Manufacturer's warranty: 5-year parts, 12-year limited on the heat exchanger
Optional accessories (sold separately)
- Floor stand
- Heat-only primary/secondary manifold kit
- DHW accessory kit
- CPVC starter and PVC vent kit, OneVent system
Gas piping, venting, condensate disposal and electrical connections must be made by a licensed installer, to the U.S. Boiler manual and local code.
