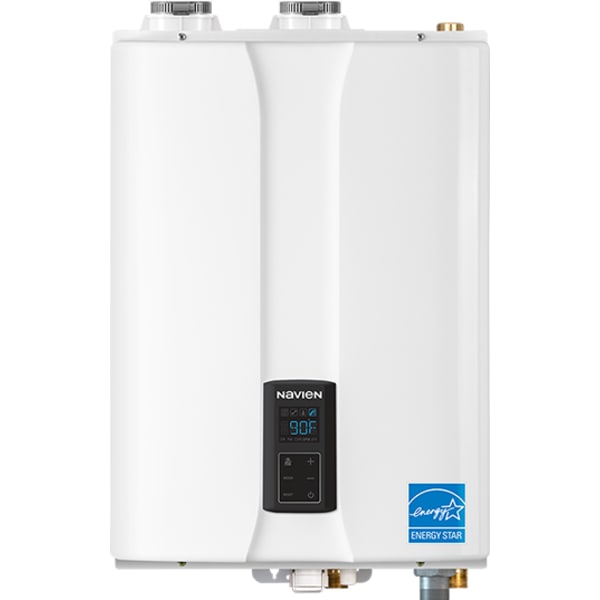

Navien NHB-80 High Efficiency Condensing Heating Boiler, 80,000 BTU, Indoor Wall-Hung, NG/LP Convertible

Roll over image to zoom in Click on image to zoom

Navien NHB-80 Condensing Heating Boiler, 80,000 BTU, Indoor Wall-Hung, NG/LP Convertible - Original NHB Series

Name: Navien NHB-80 Condensing Heating Boiler, 80,000 BTU, Indoor Wall-Hung, NG/LP Convertible - Original NHB Series
Brand: Navien
SKU: NAVI-NHB-80
Price: 3030.00 USD
Availability: InStock

NavienSKU: NAVI-NHB-80

Price:

$3,030.00

Stock:

Only 1 unit left

Quantity:

Ships UPS Ground for a flat $149 (continental US).
Flat rate by order weight: $119 under 70 lb · $149 for 70–100 lb · $189 for 100–150 lb.

Usually ships in 1–2 business days.

Pricing a job? Get a written quote →Open a trade account

Questions? Call (404) 678-9908 or chat with us.

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 80.3 lb

AFUE	95
Application	Indoor high efficiency condensing heating boiler
Approvals and Standards	CSA SCAQMD ASME AHRI Energy star
Boiler Pump Included	None
BTU Category	50-100,000 Btu/h
BTU Input Maximum	80,000 Btu/h
BTU Input Maximum Heating	80,000 Btu/h
BTU Input Minimum Heating	8,000 Btu/hr
Depth	12.8"
Efficiency Tier	90% & Above
Elevation Rating	0-7,000'
Fuel Type	Natural Gas or Propane
Gas Inlet	3/4"
Heat Exchanger Type	Water Tube
Heating System Inlet	1"
Heating System Outlet	1"
Height	23.8"
Installation Type	Indoor Wall Mount
Turndown Ratio	10:1
Type	Modular Condensing
Unit Width	17.3"
Vent Material	PolyPro / PVC
Vent Size	2"
Vent Type	Direct or power vent
Volts	120 Volts
Warranty	10/15 year heat exchanger 3/5 year parts 1 year labor
Weight	73 lb

Which version do I need? This is the original NHB series. The newer NHB-80H (NHB-H series) adds up to 15:1 turndown and dual stainless steel heat exchangers. If you are replacing an existing NHB, check the model on the rating plate. See also: Navien NHB-80H Condensing Heating Boiler, 80,000 BTU, Indoor Wall-Hung, NG/LP Convertible - NHB-H Series, up to 15:1 Turndown.

The Navien NHB-80 High Efficiency Condensing Heating Boiler, 80,000 BTU, Indoor Wall-Hung, NG/LP Convertible, NG/LP Convertible by Navien is part of our condensing boilers selection.

Brand: Navien
Manufacturer Part #: NHB-80
UPC: 884954979694
Category: Condensing Boilers
Shipping Weight: 73 lb

Features

Heating input 8,000 to 80,000 BTU/h (10:1 turndown)
Heating capacity 74,000 BTU/h; net AHRI rating 64,000 BTU/h
95% AFUE condensing design with primary and secondary stainless steel heat exchangers
Forced draft direct vent; 2" venting up to 60 ft (including Schedule 40 PVC); approved vent materials PVC, CPVC, polypropylene, stainless steel and special gas vent type BH (Class III, A/B/C)
Dual Venturi for field gas convertibility between natural gas and propane; 1/2" gas pipe capable up to 40 ft (subject to local code)
Compact indoor wall-hung unit: 24" H x 17" W x 12" D, 73 lbs
Connections: 1" space heating supply/return, 3/4" NPT (female) gas inlet
Built-in pressure sensor and low water cut-off (LWCO), metal fiber premix burner, inlet air filter and condensate trap
120V AC, 60Hz power, less than 10A maximum
ASME "H" stamp, ENERGY STAR certified and SCAQMD Rule 1146.2 low NOx (<20 ppm) per Navien
