| Pipe Size | 3/4 in. |
| Connection Type | Inlet--NPT; Outlet--Threaded |
| Body Pattern | Angle |
| Capacity (Cv) | 2.7 Cv |
| Close-off Pressure | With T100 or T200: 15 psi,With MV100: 36 psi,For low noise: 3 psi |
| Pressure Rating | Hot Water--150 psi maximum; Steam--15 psi maximum |
| Materials (Body) | Nickel Plated Bronze |
| Application | Use where installation space is limited |
| Used With | T100C,T100B,T100F |
| Dimensions | 1 1/8 in. x 2 5/8 in. |
| Temperature Range (F) | 248 F Maximum |
| Connection Size (in.) | 3/4 in. |
| Capacity | Standard |
| Capacity (Btu/hr-steam) | 63,800 Btu/hr |
| Cartridge Change Tool | Yes - Use VA8200A001 |
Description

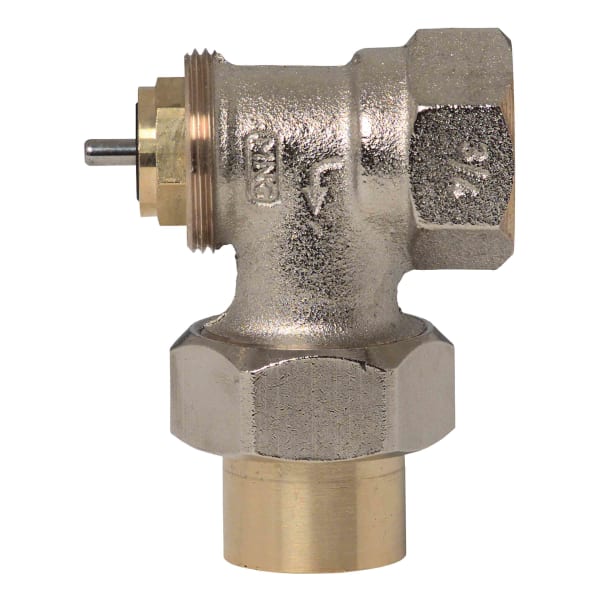

The V2040ESL20 is an angle-pattern thermostatic radiator valve body from Resideo (Honeywell Home), 3/4 inch.
A thermostatic radiator valve gives one radiator its own temperature control without any wiring. The head senses room air and opens or closes the valve underneath it, so a south-facing room that runs hot stops taking heat while the rest of the loop keeps running.
Pattern matters more than it sounds. A angle body is chosen to suit how the pipe arrives at the radiator: straight where the supply runs in line with the valve, angle where it turns up out of the floor, horizontal angle where it comes through the wall and has to turn in plan rather than in elevation. Fitting the wrong pattern means re-piping, not re-orienting.
What a working TRV takes: a valve body and a thermostatic head, ordered separately. This listing is the body.
Thermostatic heads for this valve body
- Resideo T301920W0 Thermostatic Head for M30x1.5 Connection with Remote Sensor
- Resideo T3019W0NA Thermostatic Head for M30x1.5 Connection with Integral Sensor
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V2040ESL20
- Pattern: Angle
- Connection size: 3/4 in
- Series: V2040
- UPC: 4029289040039
- Category: Thermostatic Radiator Valves
