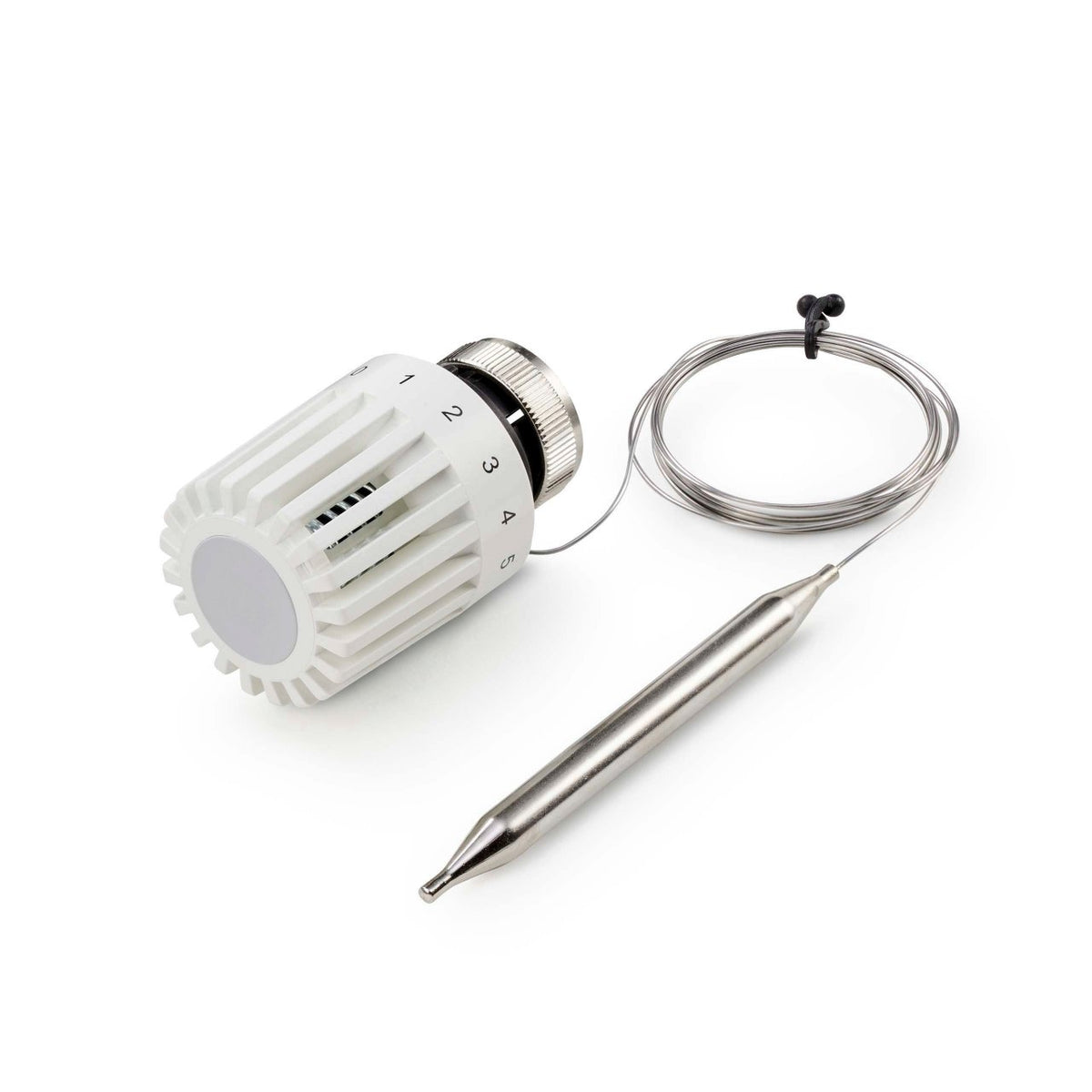

Honeywell Home T100R1012 Non-Electric Thermostatic Operator for V135 Valve, 86–158°F, 6 ft 8 in Capillary

Non-electric thermostatic operator for the V135 valve with a remote capillary, a sensing bulb that straps onto the pipe and an adjustable 86–158°F range.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: T100R1012
• Application: Radiator Accessory
• Scale Markings: 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12
• Body-Head Connection: 30 mm
• Radiator Connection Size: M30 x 1.5
• Closing Dimension: 11.5 mm
• Color: White
• Includes: External liquid-filled sensor with capillary tube, Handwheel with lid and socket, Connection nut standard, Spindle assembly, T1000R10 with contact sensor
• Set point Temperature (Max): 70 °C, 158 °F
• Set point Temperature (Min): 30 °C, 86 °F
• Sensor Length: 115 mm
• Sensor Location: Remote
• Sensor Type: Liquid-filled
• Hysteresis: 0.7 °F, 0.3 °C
• Remote Operation: Yes
• Compatible With: HVAC
• For Use With: V135 Mixing and Diverting Valves, V100 Straight Through Fluid Flow
• Warranty: 5 years
• Product Height: 77 mm
• Product Width: 50 mm
• UPC: 085267814225
• Country of Origin: DE
• Category: Thermostatic Radiator Controls & Valves
