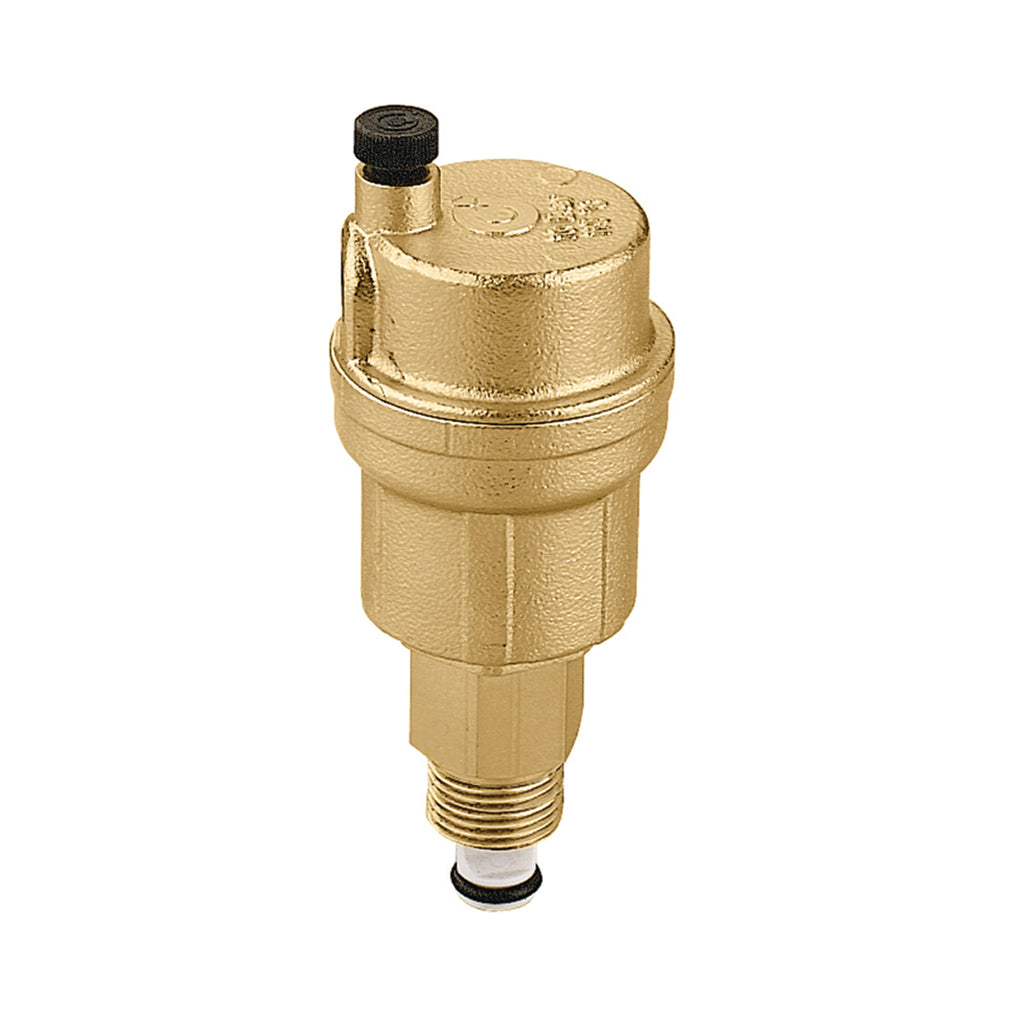

Caleffi 502710A Robocal Automatic Air Vent, 1/8" Male Thread, with Check Valve, 150 PSI, 240F

The Caleffi 502710A is a Robocal float-style automatic air vent with a 1/8" male threaded connection and a built-in check valve. It releases air that collects at high points of a closed hydronic system.

Robocal vents are compact brass air vents for hydronic heating and cooling systems, installed at high points, on manifolds, air separators and terminal units. The check valve lets the vent be removed for service without draining the system. Maximum working pressure is 150 psi, maximum venting pressure is 90 psi and maximum temperature is 240°F.

Before ordering: confirm that the port is a 1/8" female thread to receive this male vent. For water (hydronic) systems only, within the pressure and temperature limits above.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 502710A
• Series: Robocal
• Type: Float-style automatic air vent
• Size: 1/8"
• Connection: 1/8" male thread
• Body Pattern: Straight
• Material: Brass
• Max Working Pressure: 150 psi
• Max Venting Pressure: 90 psi
• Max Temperature: 240°F
• Features: Built-in check valve
• System Type: Hydronic (water)
• UPC: 8016615074673
• Category: Air Vents

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
