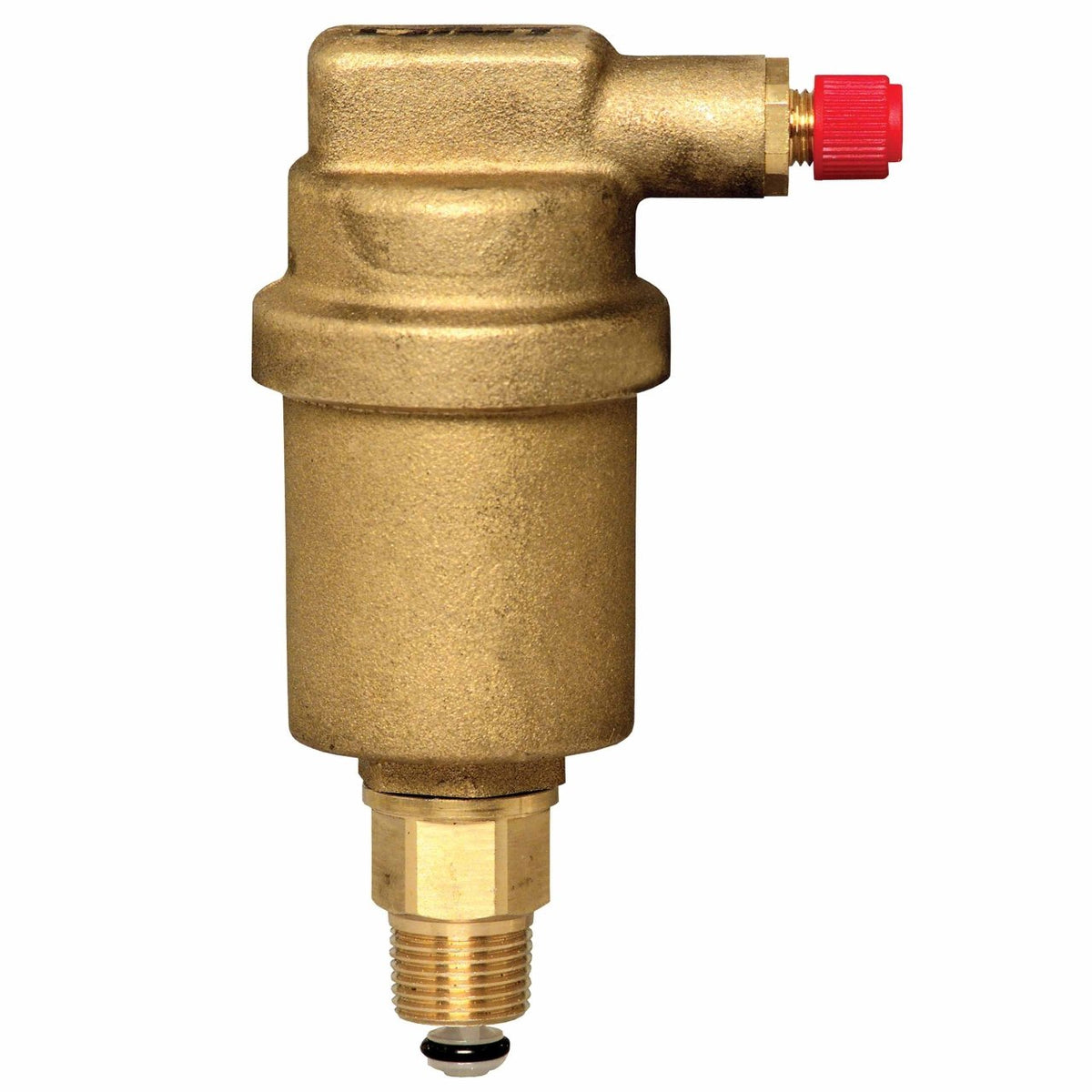

Resideo SV175/U Supervent Top Air Vent with Check Valve, 1/2 in

Supervent top air vent, 1/2 in, including check valve.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: SV175/U
• Application: Residential, Light Commercial, Air Ventilation, Hydronic Heating Systems, Hydronic Cooling Systems
• Controlled Media: Non Potable Water
• Warranty: 1 Year
• Color: Metallic, Red
• Compatible With: Hydronic Heating and Cooling Systems
• For Use With: PV-001RP/U Air Vent Assembly, PV-020RP/U Top Replacement
• Media Temperature (Max): 240 °F, 115 °C
• Bottom Connection: Yes
• Connection Type: Male NPT
• Pipe Size: 1/2 in, 12.7 mm
• DN Size: DN15
• Operating Pressure (Max): 150 psi, 1034 kPa
• Product Diameter: 2 in, 51 mm
• Product Height: 3 in, 76 mm
• Product Length: 2 in, 51 mm
• Product Weight: 0.43 lb, 0.19 kg
• Float Material: TPX® Polymethylpentene (PMP)
• Body Material: Brass
• UPC: 085267311076
• Country of Origin: IT
• Category: Air Vents
