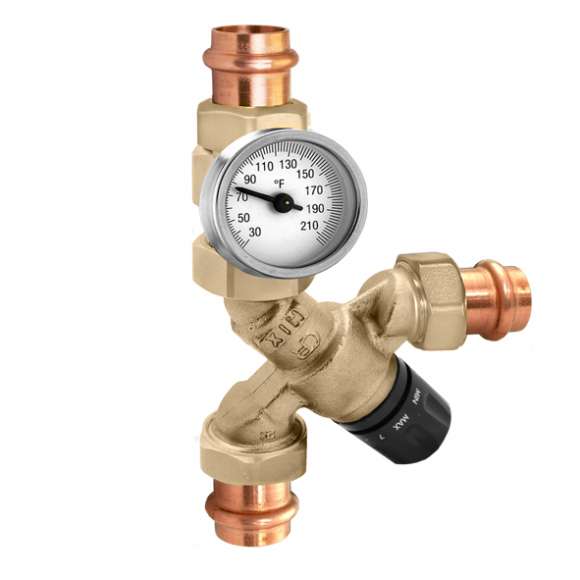

Caleffi 520619A AngleMix 3-Way Thermostatic Mixing Valve 1" Sweat Union with Temperature Gauge

The Caleffi 520619A is an AngleMix 3-way thermostatic mixing valve with 1" sweat union connections and temperature gauge. It mixes supply and return water to deliver a controlled outlet temperature to the heating circuit.

AngleMix valves are 3-way thermostatic mixing valves for hydronic heating systems. They blend hot supply water with cooler return water to hold a steady, adjustable supply temperature for low-temperature circuits such as radiant floor heating. The angle body pattern simplifies piping on near-boiler and manifold installations.

Before ordering, confirm your piping is 1" and suited to sweat connections. This valve is for hydronic heating, not for potable hot water tempering.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 520619A
• Series: AngleMix (520 Series)
• Type: 3-Way Thermostatic Mixing Valve, Angle Pattern
• Size: 1"
• Connection: 1" sweat (copper) connections
• Material: Brass
• Includes: Temperature Gauge
• UPC: 8016615656466
• Category: Mixing Valve - Angled

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Product Brochure (PDF)

See also: mixing valve - angled, all Caleffi products.
