Caleffi 520510A AngleMix 3-Way Thermostatic Mixing Valve 3/4" NPT Male Union with Temperature Gauge, Cv 2

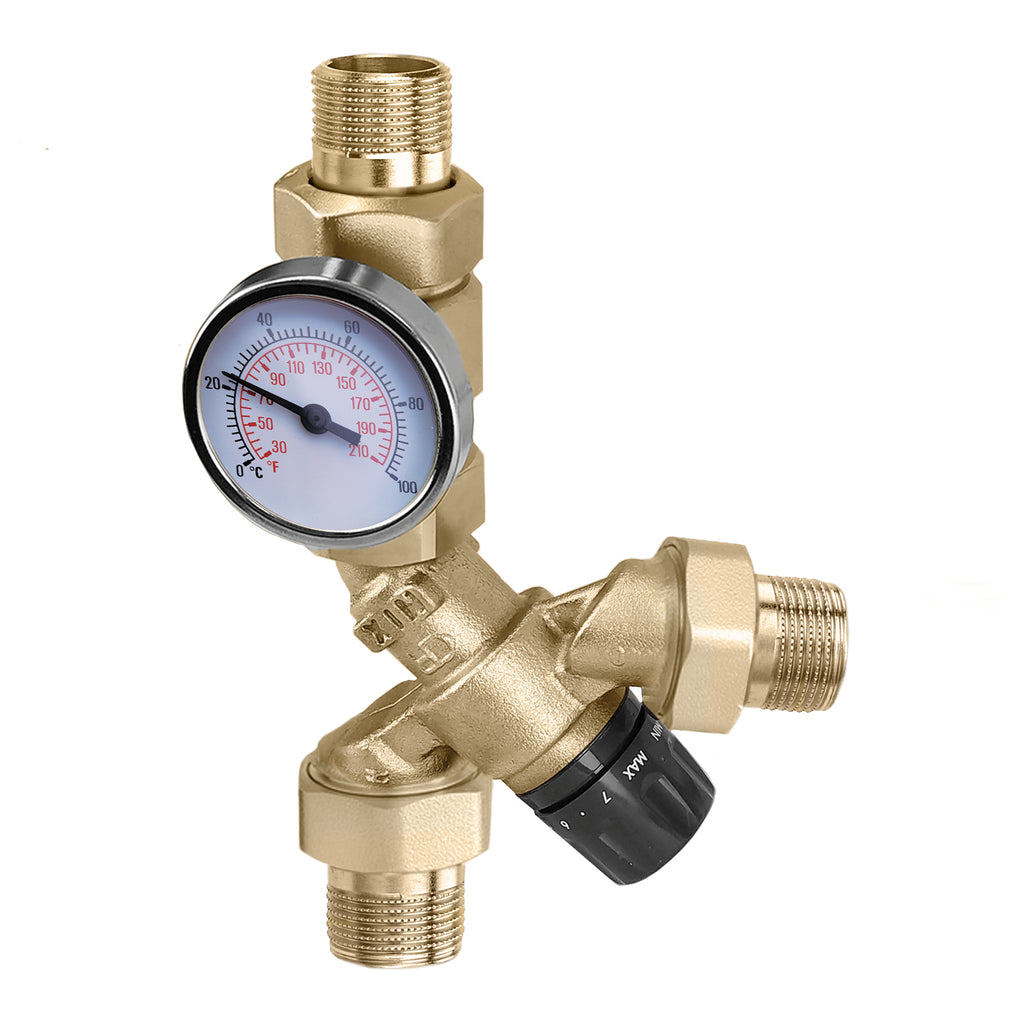

The Caleffi 520510A is an AngleMix 3-way thermostatic mixing valve with 3/4" NPT male union connections and temperature gauge. It mixes supply and return water to deliver a controlled outlet temperature to the heating circuit.

AngleMix valves are 3-way thermostatic mixing valves for hydronic heating systems. They blend hot supply water with cooler return water to hold a steady, adjustable supply temperature for low-temperature circuits such as radiant floor heating. The angle body pattern simplifies piping on near-boiler and manifold installations.

Before ordering, confirm your piping is 3/4" and suited to NPT connections, and that a flow capacity of Cv 2 matches your circuit's design flow. This valve is for hydronic heating, not for potable hot water tempering.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 520510A
• Series: AngleMix (520 Series)
• Type: 3-Way Thermostatic Mixing Valve, Angle Pattern
• Size: 3/4"
• Connection: 3/4" NPT male union (threaded)
• Flow Capacity (Cv): 2
• Material: Brass
• Includes: Temperature Gauge
• UPC: 8016615657258
• Category: Mixing Valve - Angled
