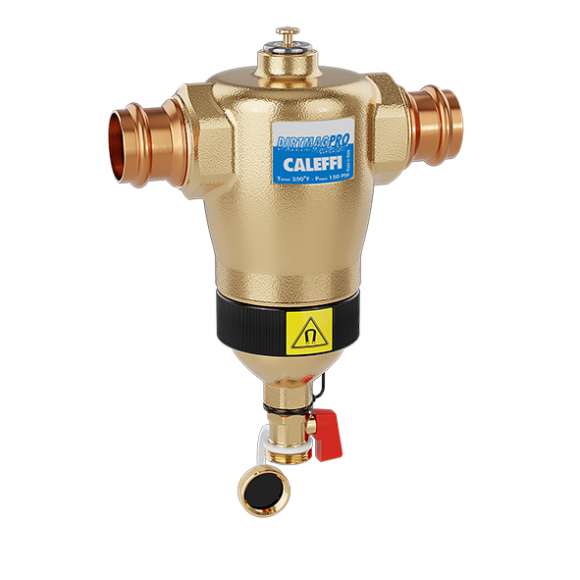

Caleffi 546368AM DIRTMAG PRO Magnetic Dirt Separator 1-1/2" Press Connections, Brass, 150 PSI

Roll over image to zoom in Click on image to zoom

Caleffi 546368AM DIRTMAG PRO Magnetic Dirt Separator 1-1/2" Press Connections, Brass, 150 PSI

Name: Caleffi 546368AM DIRTMAG PRO Magnetic Dirt Separator 1-1/2" Press Connections, Brass, 150 PSI
Brand: Caleffi
SKU: CALE-546368AM
Price: 521.99 USD
Availability: InStock

CaleffiSKU: CALE-546368AM

Price:

$521.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 15.4 lb
Box size: 13.5 × 9.65 × 4.9 in

Connection Type	Press
Size	1-1/2"

The Caleffi 546368AM DIRTMAG PRO is a 1-1/2" magnetic dirt separator with press connections, designed to remove dirt, sludge and ferrous particles from closed-loop hydronic systems.

The internal element causes suspended particles to drop out into a collection chamber, while the magnets capture ferrous debris such as magnetite that can damage high-efficiency boilers, ECM circulators and heat exchangers. Collected debris is purged through the drain valve without draining the system. Rated to separate particles down to 5 microns.

Before ordering: Confirm the 1-1/2" press connection matches your piping and that you have the correct press tool and jaws. Install on the return ahead of the boiler and allow clearance below for the drain and magnet removal.
