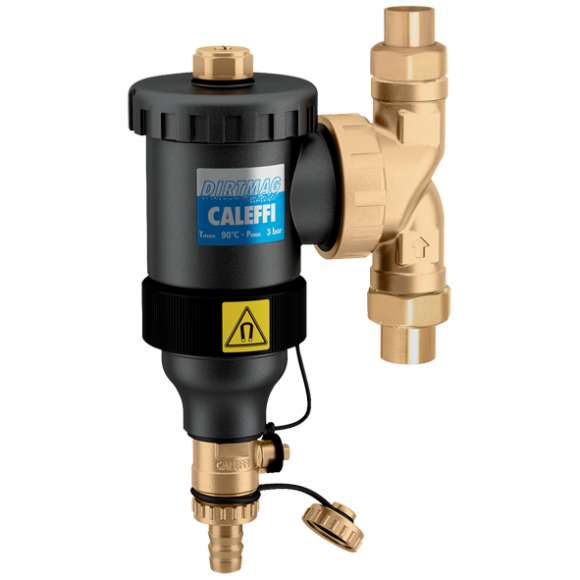

Caleffi NA545366 DIRTMAG Composite Magnetic Dirt Separator 3/4" NPT Union for Hydronic Systems

Roll over image to zoom in Click on image to zoom

Caleffi NA545366 DIRTMAG Composite Magnetic Dirt Separator 3/4" NPT Union for Hydronic Systems

Name: Caleffi NA545366 DIRTMAG Composite Magnetic Dirt Separator 3/4" NPT Union for Hydronic Systems
Brand: Caleffi
SKU: CALE-NA545366
Price: 282.99 USD
Availability: InStock

CaleffiSKU: CALE-NA545366

Price:

$282.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 3.6 lb
Box size: 9.3 × 8.15 × 4.3 in

Connection Type	MIP
Size	3/4"

The Caleffi NA545366 is a 3/4" DIRTMAG composite dirt separator with magnet and NPT union connections. It removes dirt and magnetic iron particles from closed-loop hydronic heating systems.

DIRTMAG separators use an internal mesh element and a strong magnet to capture dirt and ferrous (magnetic) particles such as iron oxide sludge from hydronic heating water. Collected debris settles in the bottom chamber and is flushed out through the drain valve, protecting pumps, boiler heat exchangers and valves, especially high-efficiency boilers with small passages.

Before ordering, confirm the 3/4" NPT union connection and check the technical data sheet for pressure and temperature limits for your system.
