Caleffi 549566A SEP4 4-in-1 Hydraulic Separator with Air, Dirt and Magnet Separation 1" Press Union

Roll over image to zoom in Click on image to zoom

Caleffi 549566A SEP4 4-in-1 Hydraulic Separator with Air, Dirt and Magnet Separation 1" Press Union

Name: Caleffi 549566A SEP4 4-in-1 Hydraulic Separator with Air, Dirt and Magnet Separation 1" Press Union
Brand: Caleffi
SKU: CALE-549566A
Price: 833.99 USD
Availability: InStock

CaleffiSKU: CALE-549566A

Price:

$833.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 18.7 lb
Box size: 23.5 × 12.5 × 8.5 in

Connection Type	Press
Size	1"
Type	Hydro Separators

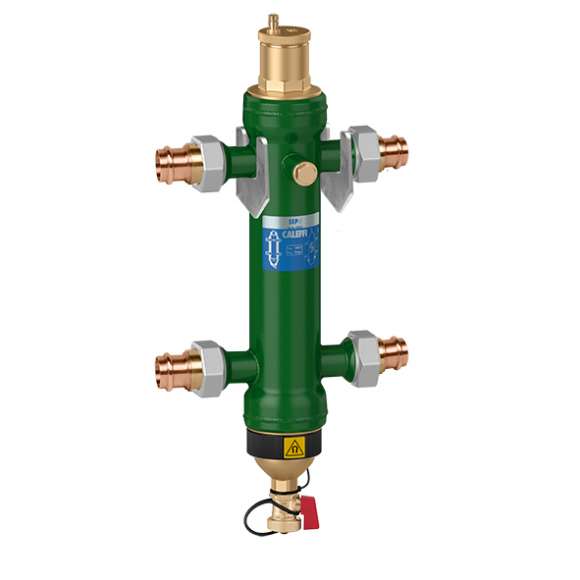

The Caleffi 549566A SEP4 is a 4-in-1 hydraulic separator with 1" press union connections. It separates the primary and secondary circuits of a hydronic system while removing air, dirt and magnetic debris.

SEP4 combines four functions in one body: hydraulic separation between the boiler (primary) and system (secondary) circuits, air elimination, dirt separation, and magnetic capture of ferrous particles. The union connections allow installation and service without additional fittings. It is rated for 150 psi and 210°F and can be used with water or glycol mixtures up to 50%, with a steel body.

Before ordering, match the 1" press connections to your piping and size the separator to the system flow rate using the technical data sheet. Insulation and mounting details are covered in the installation manual.
