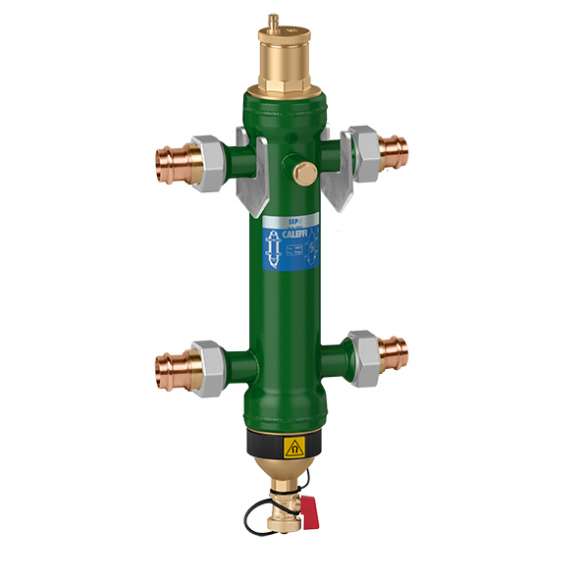

Caleffi 549507A SEP4 4-in-1 Hydraulic Separator with Air, Dirt and Magnet Separation 1-1/4" NPT Union

The Caleffi 549507A SEP4 is a 4-in-1 hydraulic separator with 1-1/4" female NPT union connections. It separates the primary and secondary circuits of a hydronic system while removing air, dirt and magnetic debris.

SEP4 combines four functions in one body: hydraulic separation between the boiler (primary) and system (secondary) circuits, air elimination, dirt separation, and magnetic capture of ferrous particles. The union connections allow installation and service without additional fittings. It is rated for 150 psi and 210°F, with a steel body.

Before ordering, match the 1-1/4" female NPT connections to your piping and size the separator to the system flow rate using the technical data sheet. Insulation and mounting details are covered in the installation manual.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 549507A
• Series: SEP4
• Type: Hydraulic Separator with Air, Dirt and Magnetic Separation
• Size: 1-1/4"
• Connection: Female NPT union (threaded)
• Material: Steel
• Max Pressure: 150 psi
• Max Temperature: 210°F
• UPC: 8016615411737
• Category: Hydro Separators

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Technical Bulletin (PDF)
