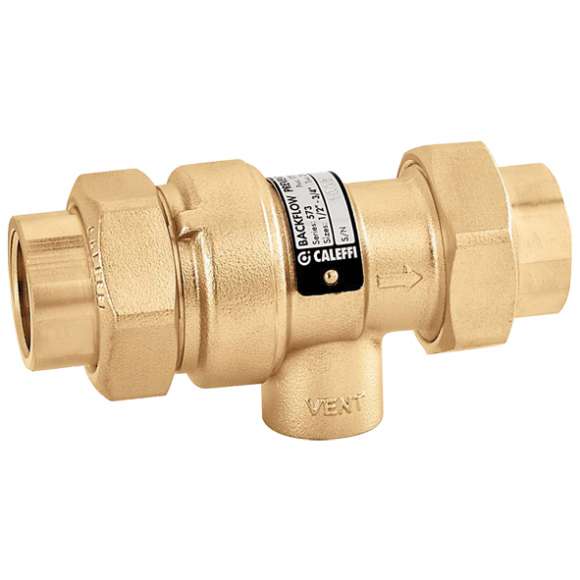

Caleffi 573503A 573 Series Dual Check Backflow Preventer with Atmospheric Vent 3/4" NPT, ASSE 1012

Roll over image to zoom in Click on image to zoom

Caleffi 573503A 573 Series Dual Check Backflow Preventer with Atmospheric Vent 3/4" NPT, ASSE 1012

Name: Caleffi 573503A 573 Series Dual Check Backflow Preventer with Atmospheric Vent 3/4" NPT, ASSE 1012
Brand: Caleffi
SKU: CALE-573503A
Price: 104.99 USD
Availability: InStock

CaleffiSKU: CALE-573503A

Price:

$104.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.7 lb
Box size: 5.7 × 3.35 × 3.35 in

Connection Type	MIP
Size	3/4"
Type	Backflow Preventors

The Caleffi 573503A is a 3/4" NPT dual check backflow preventer with intermediate atmospheric vent, listed to ASSE 1012. It keeps water from a heating or process system from flowing back into the potable water supply.

ASSE 1012 devices are commonly installed on the cold water make-up line to hydronic boilers and other low-hazard equipment connections. Two independent check valves and a vent chamber between them discharge water to atmosphere if backpressure or back-siphonage occurs.

Before ordering, confirm your 3/4" NPT line size and that local code accepts an ASSE 1012 device for the application; high-hazard connections typically require a reduced pressure zone (ASSE 1013) assembly. Allow for drainage from the vent port.
