Zurn Wilkins RK14-975XLC 1/4"-1/2" 975XL/XL2 Complete Poppets, Springs and Seats Repair Kit

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Zurn Wilkins RK14-975XL Rubber and Springs Repair Kit Compatible with the 1/4"-1/2" Model 975XL and 975XL2, and 3/8"-1/2" 975XLST.

• Brand: Zurn Wilkins
• Manufacturer Part #: RK14-975XLC
• UPC: 612052093390

Features

• Complete internal repair kit for Zurn Wilkins 975XL and 975XL2 reduced pressure principle backflow preventers, 1/4" to 1/2"
• Covers both check valves and the relief valve: poppets, springs, seats and rubber parts
• Used to rebuild an assembly that fails testing or for a full overhaul
• Lead-free law compliant (per Zurn)

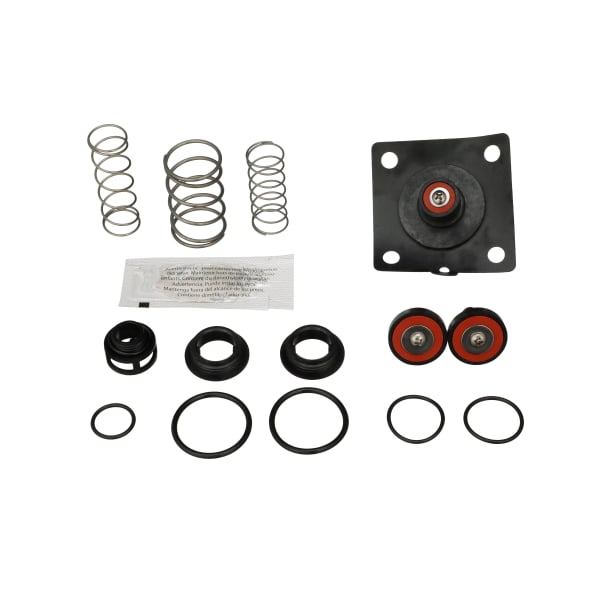

What's in the Box

• 2 Cover O-Rings
• 1 #1 Check Spring and 1 #2 Check Spring
• 2 Poppets
• 2 Seal Rings, 2 Seal Ring Retainers and 2 Retaining Bolts
• 2 Check Seats and 2 Check Seat O-Rings
• 1 Relief Valve Seat and 1 Relief Valve Seat O-Ring
• 1 Relief Valve Stem O-Ring
• 1 Relief Valve Spring
• 1 Relief Valve Retaining Bolt, 1 Ring Retainer and 1 Seal Ring
• 1 Lower Plunger, 1 Diaphragm and 1 Upper Plunger

Compatibility

• Zurn Wilkins 975XL, 1/4", 3/8" and 1/2" (14-975XL, 38-975XL, 12-975XL)
• Zurn Wilkins 975XL2, 1/4" to 1/2"
• Not for 3/4"-1" (RK34-975XLC) or 1-1/4"-2" (RK114-975XLC) assemblies
