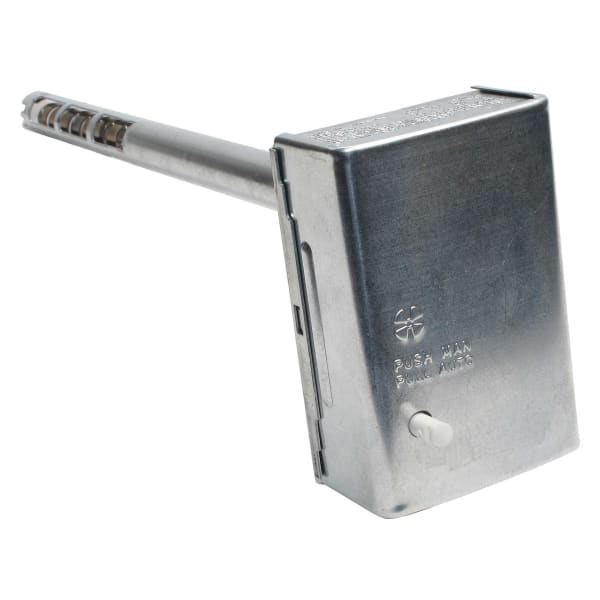

Resideo L4064B2210/U Fan and Limit Controller - 11.5 in Insert

Name: Resideo L4064B2210/U Fan and Limit Controller - 11.5 in Insert
Brand: Resideo
SKU: HONE-L4064B2210/U
Price: 174.09 USD
Availability: InStock

ResideoSKU: HONE-L4064B2210/U

Price:

$174.09

Stock:

Only 5 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.3 lb
Box size: 13.8 × 5.1 × 3.6 in

Electrical Ratings	Fan- (AFL)-- 14 A @ 120 Vac: 7 A @ 240 Vac; Fan- (ALR)-- 84 A @ 120 Vac: 42 A @ 240 Vac; Limit- (AFL)-- 8 A @ 120 Vac: 4 A @ 240 Vac; Limit- (ALR) 48 A @ 120 Vac: 24 A @ 240 Vac
Operating Temperature	-40 F to +190 F
Mounting	Surface or universal mounting bracket available (50077438-001/U)
Application	Forced warm air heating systems
Dimensions	4 9/32 in. high x 3 in. wide x 1 19/32 in. deep excluding element
UL	Listed File MP466, Guide MBPR
CSA	Certified: File No. LR1622
Temperature Ratings (F)	Maximum Ambient-- At switch: 190 F: At element: 350 F; High Limit-- 100 F to 250 F; Fan-on-- 65 F to 215 F; Fan-off-- 50 F to 200 F; High Limit Stop-- 200 F; Fan-on Stop-- 125 F; Fan-off Stop-- 100 F
Differential Temperature (F)	High limit 25 F
Switching Action	Fan switch makes and high limit switch breaks on temperature rise.
Element Insertion Length (in.)	11 1/2 in.
Pilot Duty Ratings	0.25 A @ 0.25 to 12 Vdc; 2 A @ 24 Vac

Installation Instructions for L4064A-F, J, R, T, W, Y Fan and Limit Controllers (English) PDF ↗
Installation Instructions for L4064B Universal Combination Fan and Limit Controllers (Engl PDF ↗
Installation Instructions for L4064B, L4064R Universal Combination Fan and Limit Controlle PDF ↗

The L4064B2210 is a high limit control from Resideo (Honeywell Home), fixed 200 °F, 11.5 in insert, manual reset.

The limit is the control that is supposed to never operate. It watches the plenum and breaks the burner circuit if temperature climbs past the setting — the case where the blower has failed, a filter has collapsed or a damper is shut and the heat has nowhere to go.

Manual reset is deliberate. A limit that resets itself lets the furnace keep cycling on an overheat condition and hides the fault. One that stays open forces somebody to find out why it tripped.

Insert length has to match the plenum. Too short and the element sits in the sheet metal instead of the airstream; too long and it can reach the heat exchanger.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: L4064B2210/U
Type: High limit control, manual reset
Setting: Fixed 200 °F
Insert length: 11.5 in
UPC: 085267000192
Category: Fan & Limit Controllers

Full Specifications

Application	Forced Warm Air Heating Systems
Product Features	Three wiring terminal options available for easy installation, Push in receptacles for stripped wire, Field adjustable fan and high limit settings, Has manual fan switch that overrides the fan control to keep the fan running continuously, Includes mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse..
Approvals and Standards	UL Listed File MP466, Guide MBPR, CSA Certified: File No. LR1622
Compatible With	Forced Warm Air Heating Systems
Includes	Breakaway Jumper, Manual and automatic fan on/off settings
Element Type	Helical bimetal
Manual Reset	No
Ambient Operating Temperature (Max)	190 °F, 88 °C
Fan-Off Temperature (Max)	200 °F, 93 °C
Fan-Off Temperature (Min)	50 °F, 10 °C
Fan-On Temperature (Max)	215 °F, 102 °C
Fan-On Temperature (Min)	65 °F, 18 °F
High Limit Differential Temperature	25 °F, 14 °C
High Limit Stop	200 °F
High Limit Temperature (Max)	250 °F, 121 °C
High Limit Temperature (Min)	100 °F, 38 °F
Surface Mounting Temperature (Max)	190 °F, 88 °C
Electrical Ratings at Full Load	Fan: 14 A @ 120 V AC: 7 A @ 240 V AC, Limit: 8 A @ 120 V AC: 4 A @ 240 V AC
Electrical Ratings at Locked Rotor	Fan: 84 A @ 120 V AC: 42 A @ 240 V AC, Limit: 48 A @ 120 V AC: 24 A @ 240 V AC
Pilot Duty Rating	0.25 A @ 0.25 to 12 V DC, 2 A @ 24 V AC
Switch Action	Fan switch makes on temperature rise, High Limit Switch breaks on temperature rise
Manual Fan Switch	Yes
Element Insertion Length	11 1/2 in, 292 mm
Element Temperature (Max)	350 °F, 177 °C
Product Height	4.28 in, 109 mm
Product Length	3 in
Product Width	1.49 in
Finish	Zinc- Plated Steel
