Limit Control- fixed 200 °F range, 3 in insert Manual Reset

Roll over image to zoom in Click on image to zoom

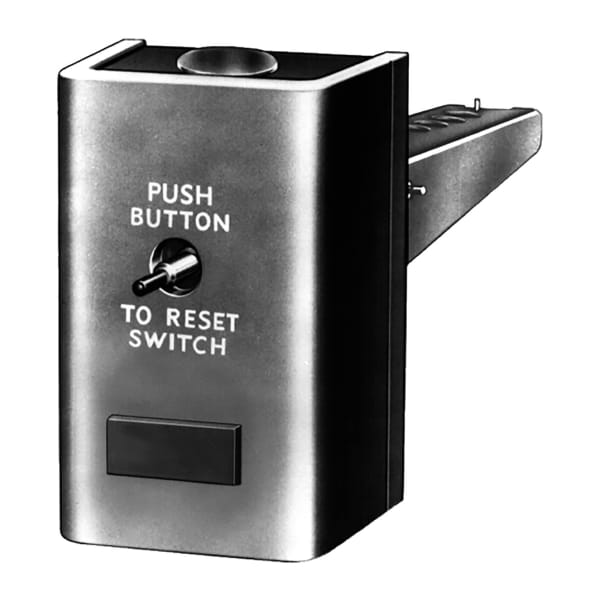

Resideo L4029E1029/U Limit Control- Fixed 200 °F Range, 3 in Insert Manual Reset

Name: Resideo L4029E1029/U Limit Control- Fixed 200 °F Range, 3 in Insert Manual Reset
Brand: Resideo
SKU: HONE-L4029E1029/U
Price: 207.31 USD
Availability: InStock

ResideoSKU: HONE-L4029E1029/U

Price:

$207.31

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 3–4 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.76 lb
Box size: 7.5 × 4.45 × 2.7 in

Electrical Ratings	Limit- (AFL)-- 2 A @ 30 Vac: 10 A @ 120 Vac: 5 A @ 240 Vac; Limit- (ALR)-- 60 A @ 120 Vac: 30 A @ 240 Vac
Dimensions	3 3/4 in. high x 2 5/16 in. wide x 2 in. deep excluding element.
UL	Listed: File No. MP466, Vol. 8, Guide No. MBPR2
CSA	Certified: File No. LR95329-5
Temperature Ratings (F)	Maximum Ambient-- At switch: 190 F: At element: 350 F; High Limit Stop-- 200 F
Switching Action	Normally closed SPST switch opens on temperature rise to the set point. Switch must be manually reset to operate.
Element Insertion Length (in.)	3 in.
Pilot Duty Ratings	0.25 A @ 0.25 to 12 Vdc

The L4029E1029 is a high limit control from Resideo (Honeywell Home), fixed 200 °F, 3 in insert, manual reset.

The limit is the control that is supposed to never operate. It watches the plenum and breaks the burner circuit if temperature climbs past the setting — the case where the blower has failed, a filter has collapsed or a damper is shut and the heat has nowhere to go.

Manual reset is deliberate. A limit that resets itself lets the furnace keep cycling on an overheat condition and hides the fault. One that stays open forces somebody to find out why it tripped.

Insert length has to match the plenum. Too short and the element sits in the sheet metal instead of the airstream; too long and it can reach the heat exchanger.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: L4029E1029/U
Type: High limit control, manual reset
Setting: Fixed 200 °F
Insert length: 3 in
UPC: 085267049368
Category: Fan & Limit Controllers

Full Specifications

Application	Provides high limit cutout with manual reset in warm air or air conditioning systems, Warm air systems, the L4029 may be used as secondary high limits for positive burner shutdown on fan failure, or on reverse airflow in counterflow furnaces, Limits may also be used to detect heat from a fire in air conditioning or ventilation ducts and shut off air circulation to contain the fire
Product Features	Shuts off the fan when air temperature is indicative of fire, Internal snap-acting switch actuated by a bimetal strip inserted directly into the air stream responds rapidly to temperature changes, Requires manual reset
Approvals and Standards	UL Listed: File No. MP466, Vol. 8, Guide No. MBPR2, CSA Certified: File No. LR95329-5
Ambient Operating Temperature (Max)	190 °F, 88 °C
High Limit Differential Temperature	25 °F, 14 °C
Electrical Ratings at Full Load	Limit: 2 A @ 30 V AC: 10 A @ 120 V AC: 5 A @ 240 V AC
Electrical Ratings at Locked Rotor	Limit: 60 A @ 120 V AC: 30 A @ 240 V AC
Pilot Duty Rating	0.25 A @ 0.25 to 12 V DC
Switch Action	Normally closed SPST switch opens on temperature rise to the set point, Switch must be manually reset to operate
Element Insertion Length	3 in, 76 mm
Product Height	3.75 in, 95 mm
Product Width	2.31 in, 59 mm
Additional Dimensions Details	2 in deep excluding element, 51 mm deep excluding element
Finish	Smooth Gray
