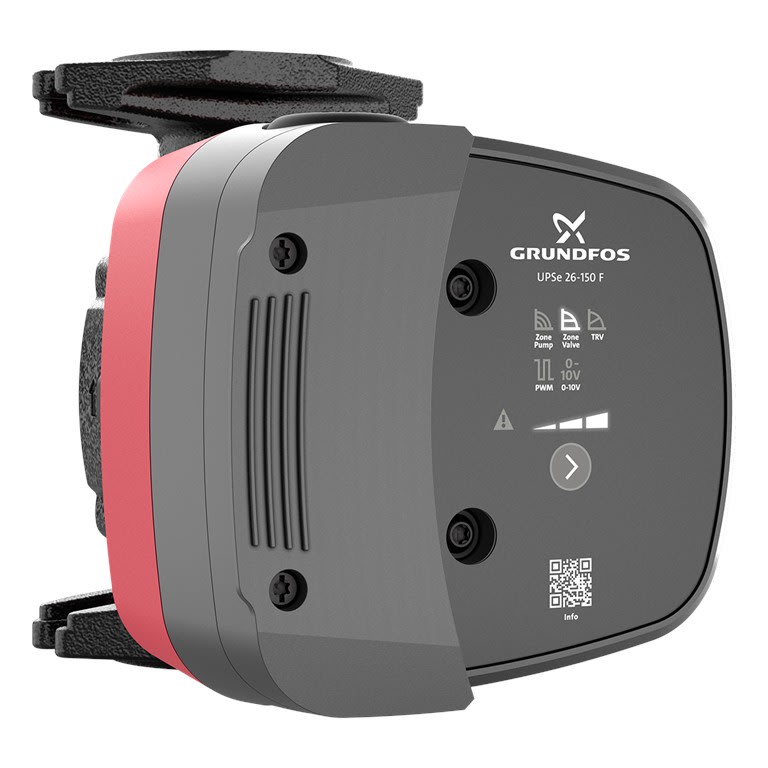

Grundfos 93369868 UPSe 26-150F High Efficiency ECM Circulator, Cast Iron, Flanged, 115V

The Grundfos 93369868 is a UPSe 26-150F high-efficiency circulator with an electronically commutated (ECM) motor and a flanged cast iron pump housing.

UPSe 26 circulators are designed for hydronic HVAC systems in large residential and light commercial buildings. They offer multiple control modes and accept external 0-10 V and PWM input signals, so the pump can be run from a boiler or building control. This 26-150 model reaches a maximum head of 46.3 ft and flows up to 52 GPM.

Before ordering: the pump runs on 115V, single phase, and connects with flanges. Make sure you have a matching flange set for your pipe size, and check the installation guide for control wiring if you plan to use the 0-10 V or PWM input.

Specifications

• Brand: Grundfos
• Manufacturer Part #: 93369868
• Series: UPSe
• Model: UPSe 26-150F
• Type: High-efficiency ECM circulator
• Body Material: Cast Iron
• Connection: Flanged
• Max Flow: 52 GPM
• Max Head: 46.3 ft
• Max Pressure: 150 psi
• Control Inputs: 0-10 V and PWM
• Voltage: 115V, 1 phase, 60 Hz
• Amperage: 3.1 A
• Wattage: 200 W
• Category: Fixed Speed Circulators

Documents

• Installation Guide (PDF)
• Quick Guide (PDF)
• Specification Sheet (PDF)
