Grundfos 95906636 UPS43-100F 3-Speed Circulator, Cast Iron, Flanged, 1/3 HP, 115V

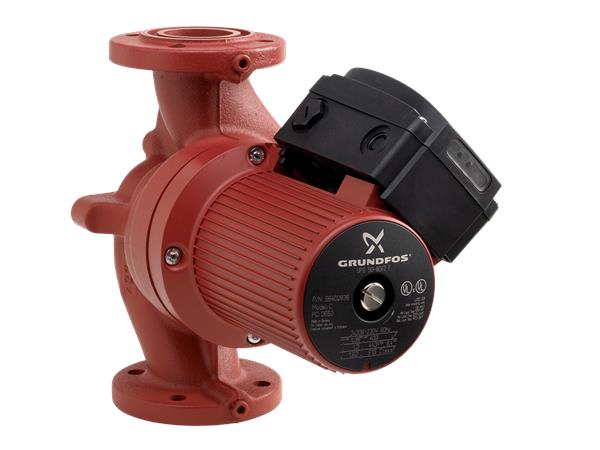

The Grundfos 95906636 is a UPS43-100F three-speed wet-rotor circulator with a cast iron pump housing and flanged connections.

UPS circulators are wet-rotor pumps with a manual three-speed selector on the terminal box, so the duty point can be matched to the system. The cast iron housing is intended for closed-loop hydronic heating and cooling systems. This model handles flows up to 65 GPM and a maximum head of 31 ft.

Before ordering: confirm your supply voltage (115V, single phase), and that you have a matching flange set for your pipe size.

Specifications

• Brand: Grundfos
• Manufacturer Part #: 95906636
• Series: UPS
• Model: UPS43-100F
• Type: 3-speed wet-rotor circulator
• Body Material: Cast Iron
• Connection: Flanged x flanged
• Max Flow: 65 GPM
• Max Head: 31 ft
• Max Pressure: 145 psi
• Voltage: 115V, 1 phase, 60 Hz
• Amperage: 3.5 A
• Horsepower: 1/3 HP
• UPC: 5700313291748
• Category: Fixed Speed Circulators

Documents

• Installation & Operation Manual (PDF)
