| Connection Type | Male NPT |
| Operating Temperature | 240 F Maximum |
| Application | Residential or commercial heating and cooling systems |
| Dimensions | 2 in. high x 1 5/32 in. diameter |
| Maximum Safe Operating Pressure (psi) | 150 psi |
| Weight (lb) | 0.12 lb |
| Weight (kg) | 0.06 kg |
| Materials | Brass |
| Connection Size (in.) | 1/4 in. |
Description

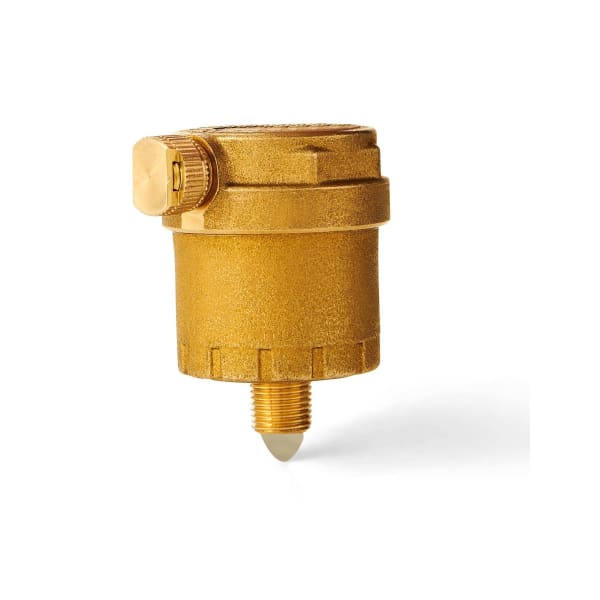

The FV147A is an automatic air vent from Resideo (Honeywell Home), 1/4 in connection.
An automatic air vent does one job without being asked: it sits at a high point, and when air collects under it a float drops and lets the air out, then rises and reseals as water returns. It is what replaces walking the building with a bleed key every autumn.
Height is everything. A vent below the highest point of the loop vents nothing, because the air is not where the vent is. Put it at the actual top — the crown of the main, the top of the riser, the high side of the air separator.
This one is small and light enough to go on a fitting that would not carry a full-size vent, which is what makes it the answer at the top of a riser or on a coil where there is no room for anything larger.
Rated to 240 F maximum and 150 psi.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: FV147A/U
- Type: Automatic air vent
- Connection: Male NPT
- Connection size: 1/4 in
- Material: Brass
- Maximum temperature: 240 F
- Maximum pressure: 150 psi
- Dimensions: 2 in high x 1 5/32 in diameter
- UPC: 085267825986
- Category: Air Vents
