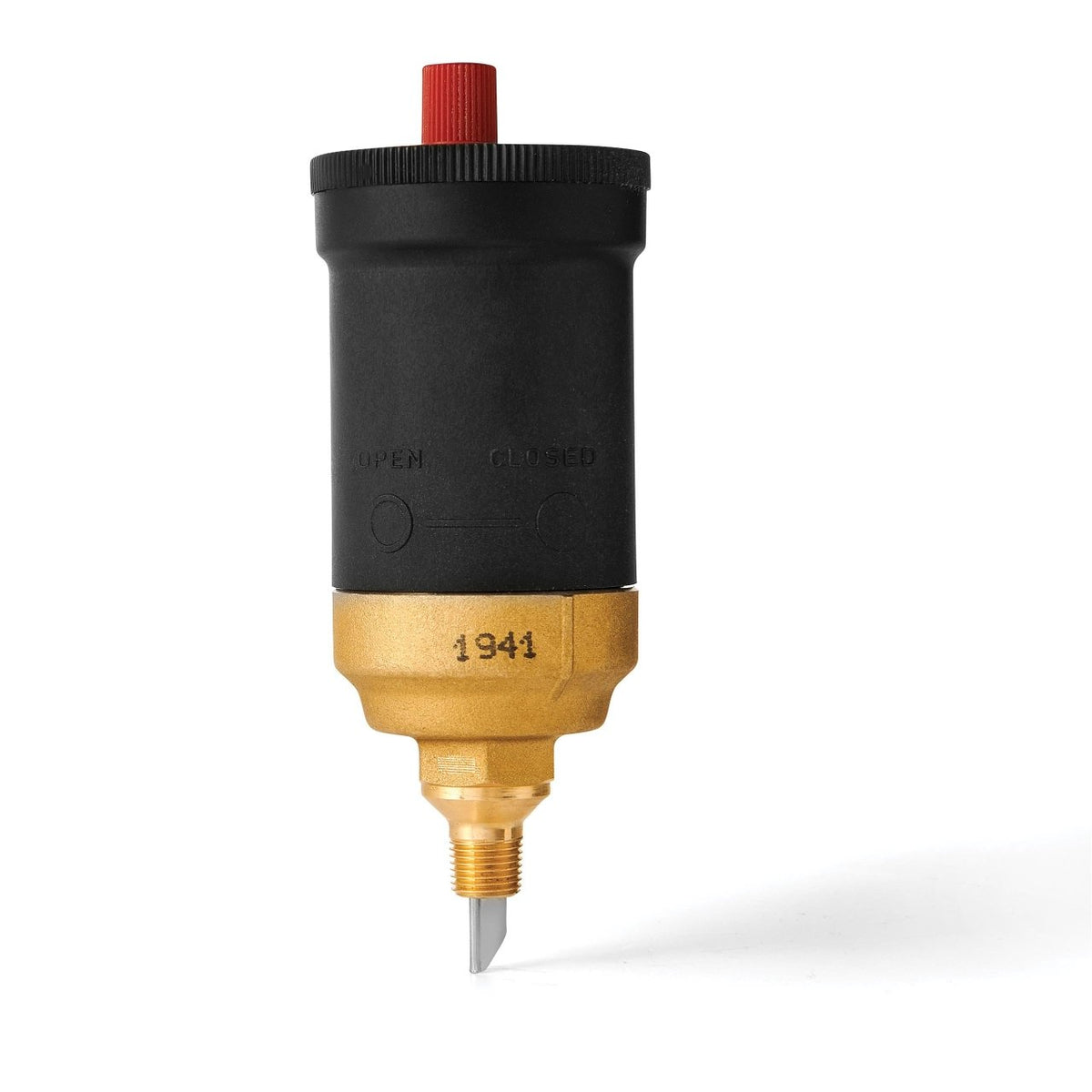

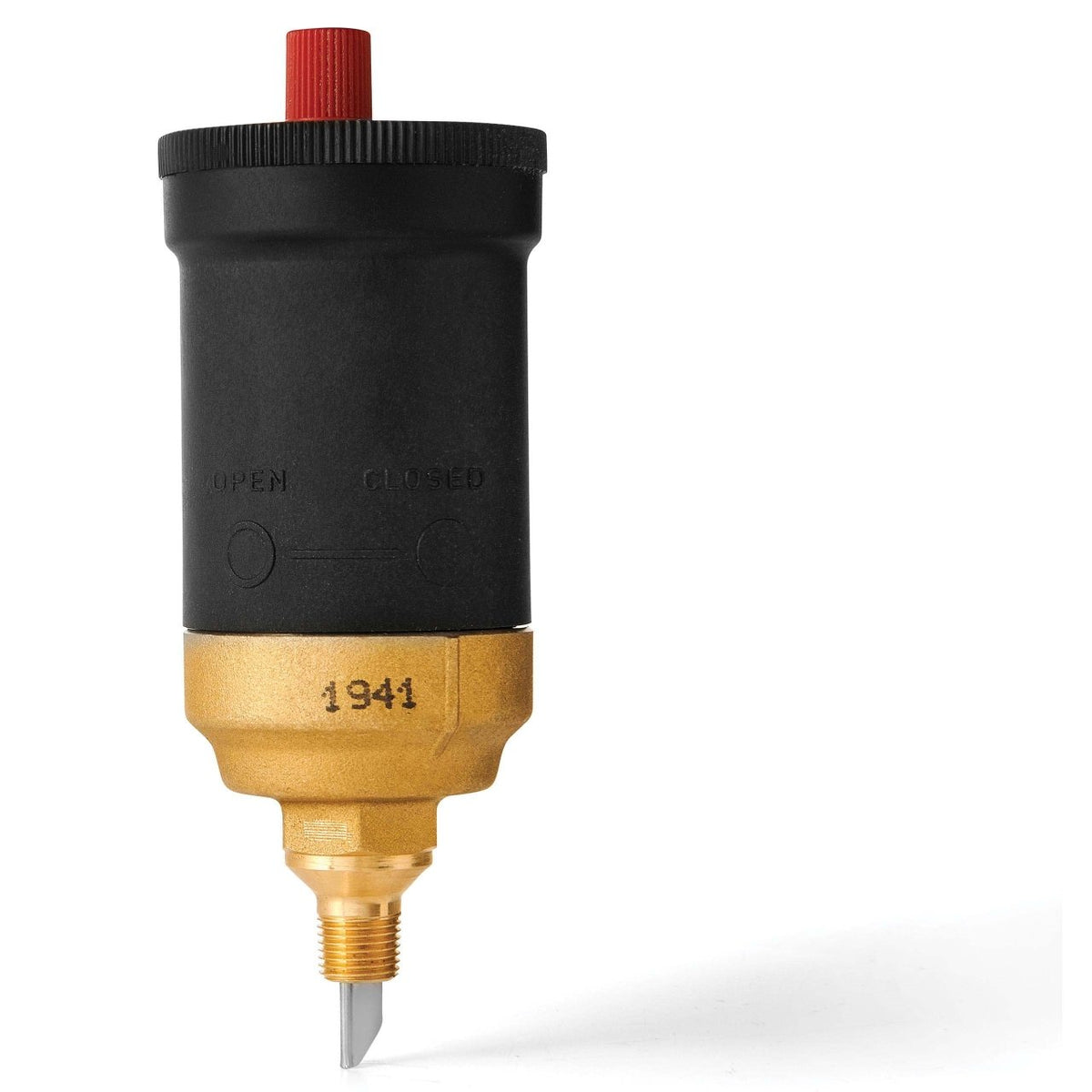

Resideo EA122B117 Air Vent, EA122B

Item #: HONE-EA122B117
Mfr. part #: EA122B117
UPC: 085267767781

$30.54

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.2 lb
Box size: 5.5 × 2 × 2 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	EA122B117
UPC	085267767781

EA122B117 has been discontinued by the manufacturer (2015-09). No direct replacement has been published by the manufacturer. Contact us for help choosing an alternative.

EA122B air vent.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: EA122B117
Application: Air Ventilation, Potable Water Systems
Controlled Media: Water-Glycol Mixture according to VDI 2035
Do Not Use With: Steam Systems
Warranty: 5 years
Color: Black, Metallic, Red
Compatible With: Not suitable for mineral oil or liquids with mineral-oilbased additives
For Use With: P122B1002 Cover Assembly, Q122A1001 Safe Waste Connector, 204992 Vent Cap
Includes: Safety drain connection and vent cap with leakage guard
Media Temperature (Max): 212 °F, 100 °C
Bottom Connection: Yes
Connection Type: Male NPT
Pipe Size: 1/8 in, 3.18 mm
DN Size: DN6
Operating Pressure (Max): 90 psi, 620 kPa
Product Diameter: 1 7/8 in, 48 mm
Product Height: 5.25 in, 133 mm
Product Length: 1.88 in, 48 mm
Seal Material: EPDM Rubber
Float Material: Polyethylene (PE)
Body Material: Thermoplastics
UPC: 085267767781
Country of Origin: DE
Category: Air Vents
