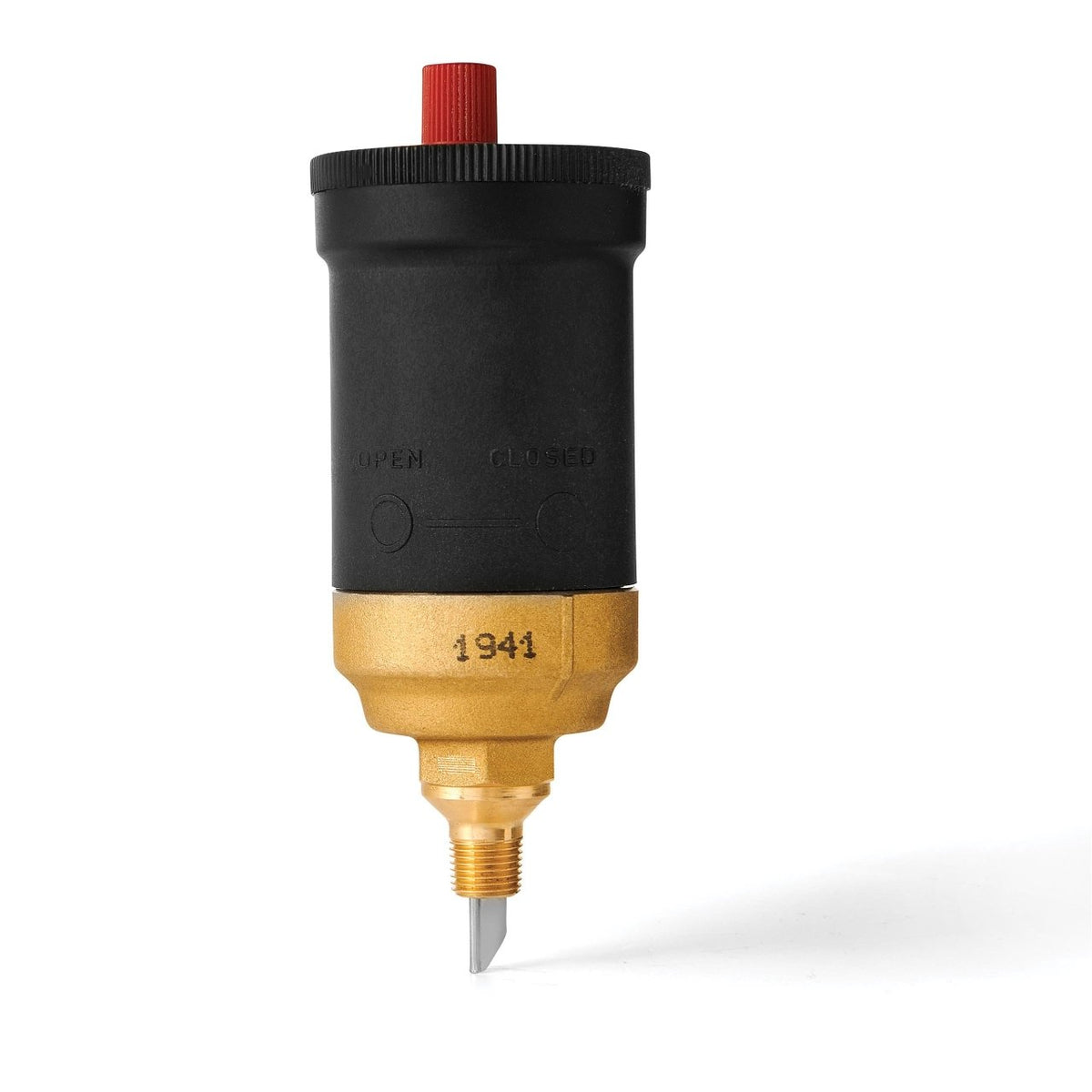

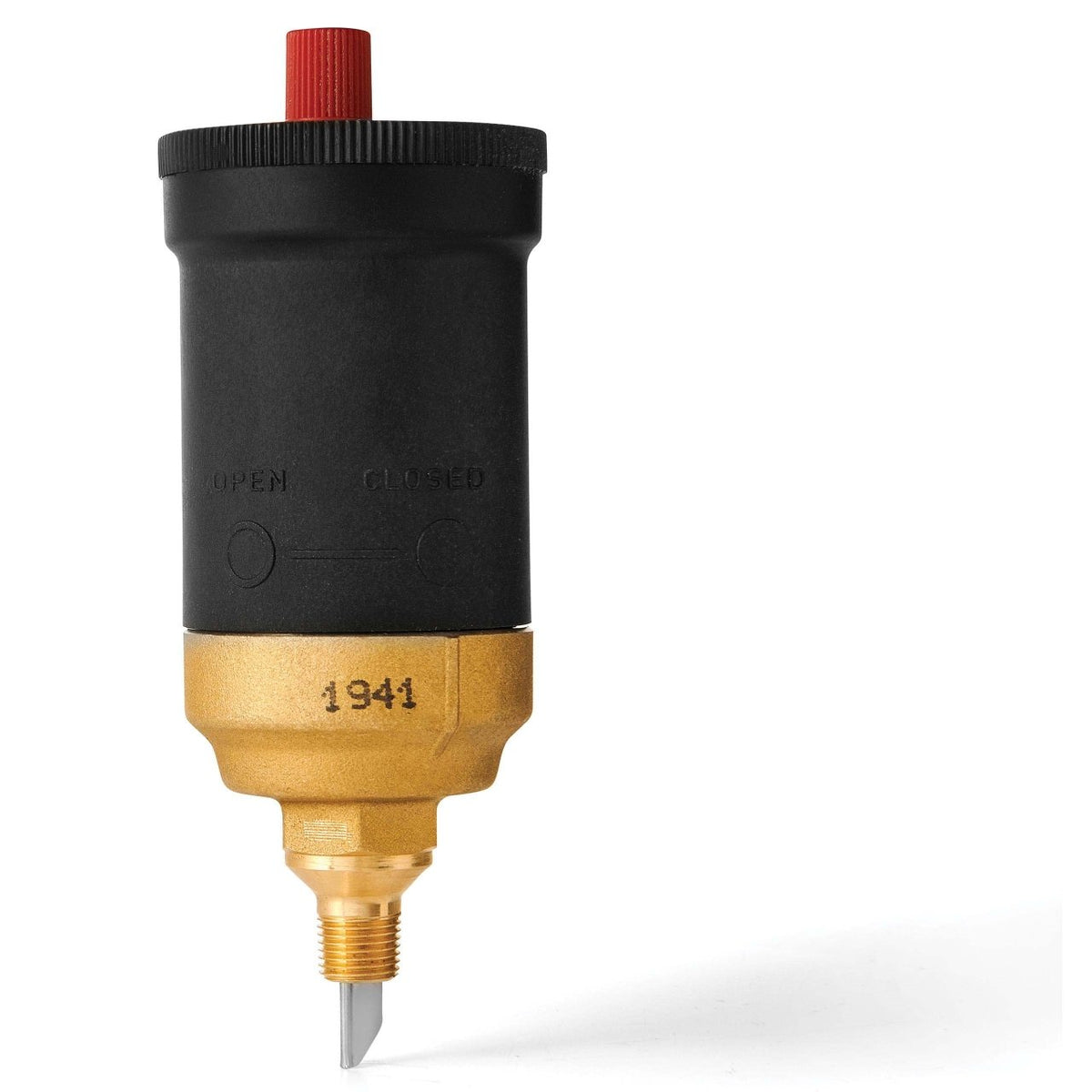

Resideo EA122A1002 Air Vent, 1/8 in NPT Male, 90 psi, for Hydronic Heating

Air vent with a 1/8 in NPT male threaded connection and 90 psi operating pressure for hydronic heating applications.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: EA122A1002
• Application: Air Ventilation, Potable Water Systems
• Controlled Media: Water-Glycol Mixture according to VDI 2035
• Do Not Use With: Steam Systems
• Warranty: 5 years
• Color: Black, Metallic, Red
• Compatible With: Not suitable for mineral oil or liquids with mineral-oilbased additives
• For Use With: P122B1002 Cover Assembly, Q122A1001 Safe Waste Connector, 204992 Vent Cap
• Media Temperature (Max): 212 °F, 100 °C
• Bottom Connection: Yes
• Connection Type: Male NPT
• Pipe Size: 1/8 in, 3.18 mm
• DN Size: DN6
• Operating Pressure (Max): 90 psi, 620 kPa
• Product Diameter: 1 7/8 in, 48 mm
• Product Height: 5.25 in, 133 mm
• Product Length: 1.88 in, 48 mm
• Seal Material: NBR
• Float Material: Polyethylene (PE)
• Body Material: Thermoplastics
• UPC: 085267138840
• Country of Origin: DE
• Category: Air Vents
