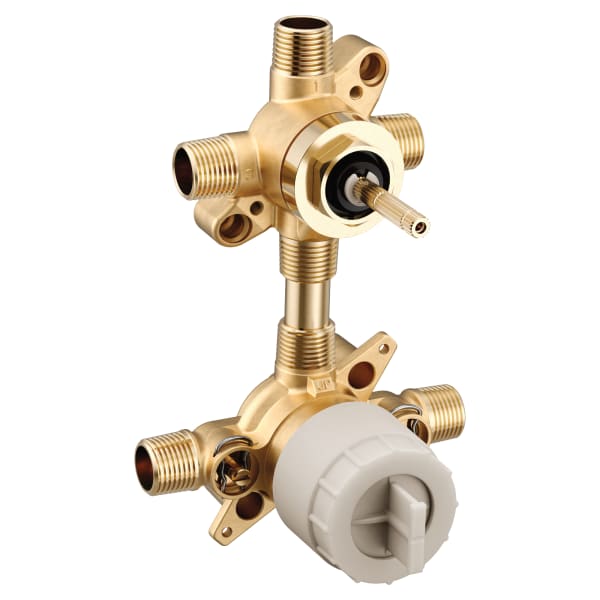

Moen U232CIS M-CORE 3-Series Mixing Valve with 2 or 3 Function Integrated Transfer Valve with CC/IPS Connections and Stops

Moen U232CIS is the M-CORE 3-Series Mixing Valve with 2 or 3 Function Integrated Transfer Valve with CC/IPS Connections and Stops.

This is an M-CORE 3-Series mixing valve with an integrated 2 or 3 function transfer valve, combining temperature mixing and outlet selection in one rough-in body. M-CORE trim kits install over it and are ordered separately.

It has CC/IPS connections and integral stops, which let you shut off the supply at the valve for service. Choose the connection type that matches the supply piping, set the valve depth to the finished wall, and confirm the trim you plan to use is an M-CORE trim of the matching series.

What's included

• M-CORE pressure balancing mixing valve with integrated 2/3-function transfer (brass)
• Transfer cartridge (installed)
• 1/4-turn stops on each inlet
• Flush plug
• 1/2" CC/IPS connections

Cartridge: The transfer (diverter) cartridge is included in the valve. The pressure balancing mixing cartridge is not included; it ships with the M-CORE 3-Series trim kit.

Trim (sold separately)

The handle and escutcheon are not included. Finish this valve with the Moen M-CORE 3-Series trim with integrated transfer made for U232 valves.

Specifications

• Brand: Moen
• Manufacturer Part #: U232CIS
• Valve platform: M-CORE 3-Series
• Transfer functions: 2 or 3
• Connections: CC/IPS
• Stops: Yes
• UPC: 026508319604
• Category: Diverter Valves
