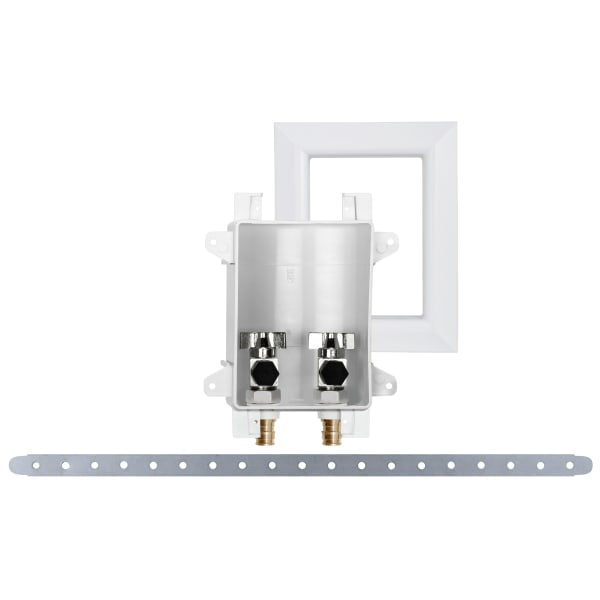

Sioux Chief 696RG2001WF OxBox Faucet Supply Box Firerated F1960

Sioux Chief 696RG2001WF is an OxBox fire-rated dual-valve supply box for a lavatory, toilet or dishwasher, with a 1/2" PEX F1960 inlet and 3/8" OD compression outlets.

It places two quarter-turn ball valves, hot and cold, in one recessed ABS box, a clean alternative to separate stub outs and stops at a faucet or lavatory. This version has no built-in arrester.

This fire-rated version is for fire-rated wall assemblies. It ships with a frame. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696RG2001WF
• Outlets: 2 x 3/8" OD compression
• Arrester: No
• Inlet: 1/2" PEX F1960
• Fire-rated: Yes, listed by Warnock Hersey to ASTM E814 and CAN/ULC S115
• Frame: Included
• Standards: ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, IAPMO PS 54
• UPC: 739236100542
• Category: Sink, Toilet & Dishwasher
• Shipping Weight: 1.959 lb

See also: sink, toilet & dishwasher boxes, supply outlet boxes, firestop, all Sioux Chief.
