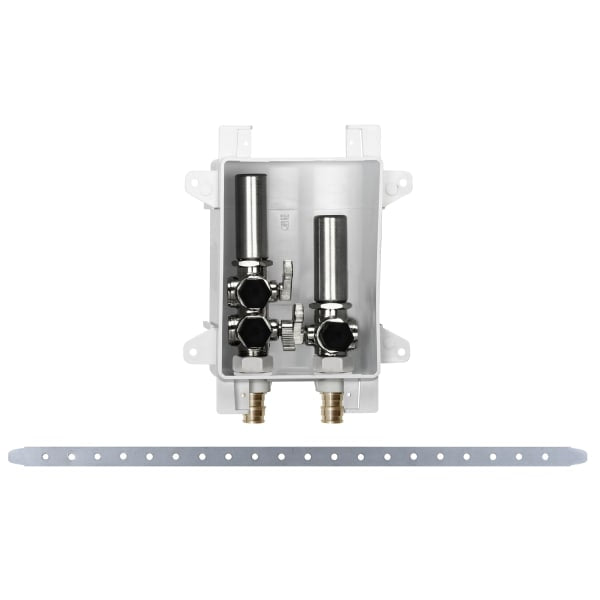

Sioux Chief 696-G3021WR Oxbox Lav/DW F1960 with Mini-Rester Rough-In

Sioux Chief 696-G3021WR is an OxBox kitchen supply box with three 3/8" compression outlets (2 hot, 1 cold), dual arresters, and 1/2" PEX F1960 inlets.

It puts three quarter-turn ball valves in one recessed ABS box at the kitchen sink; Sioux Chief suggests it for sink/dishwasher or sink/ice maker layouts. Water hammer arresters are built in on both the hot and cold sides.

This is the rough-in version without a frame; add an OxBox frame at trim. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696-G3021WR
• Outlets: 3 x 3/8" OD compression (2 hot, 1 cold)
• Arrester: Hot and cold side
• Inlet: 1/2" PEX F1960
• Fire-rated: No
• Frame: Not included (rough-in)
• Standards: ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, IAPMO PS 54
• UPC: 739236700957
• Category: Sink, Toilet & Dishwasher
