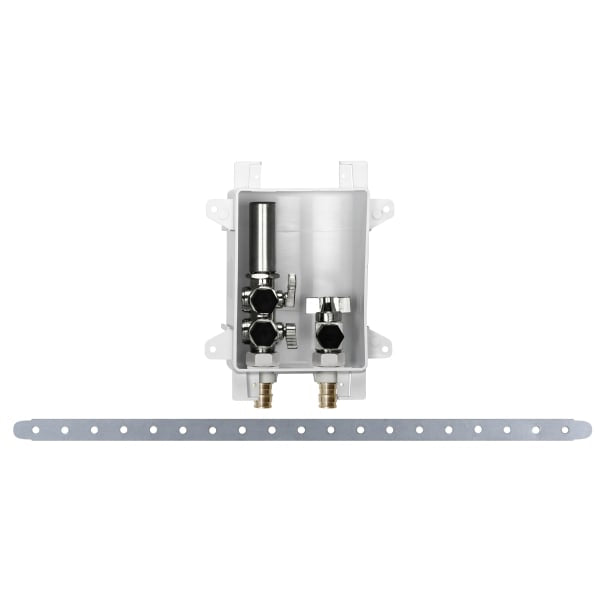

Sioux Chief 696-G3011WR OxBox Faucet Supply Box with Arrester F1960

Sioux Chief 696-G3011WR is an OxBox kitchen supply box with three 3/8" compression outlets (2 hot, 1 cold), a hot-side arrester, and 1/2" PEX F1960 inlets.

It puts three quarter-turn ball valves in one recessed ABS box at the kitchen sink; Sioux Chief suggests it for sink/dishwasher or sink/ice maker layouts. A water hammer arrester is built in on the hot side, which typically feeds the dishwasher.

This is the rough-in version without a frame; add an OxBox frame at trim. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696-G3011WR
• Outlets: 3 x 3/8" OD compression (2 hot, 1 cold)
• Arrester: Hot side
• Inlet: 1/2" PEX F1960
• Fire-rated: No
• Frame: Not included (rough-in)
• Standards: IAPMO PS 54, ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
• UPC: 739236102386
• Category: Sink, Toilet & Dishwasher

See also: sink, toilet & dishwasher boxes, supply outlet boxes, all Sioux Chief.
