Sioux Chief 696-G1010WR OxBox Ice Maker Box with Arrester F1960

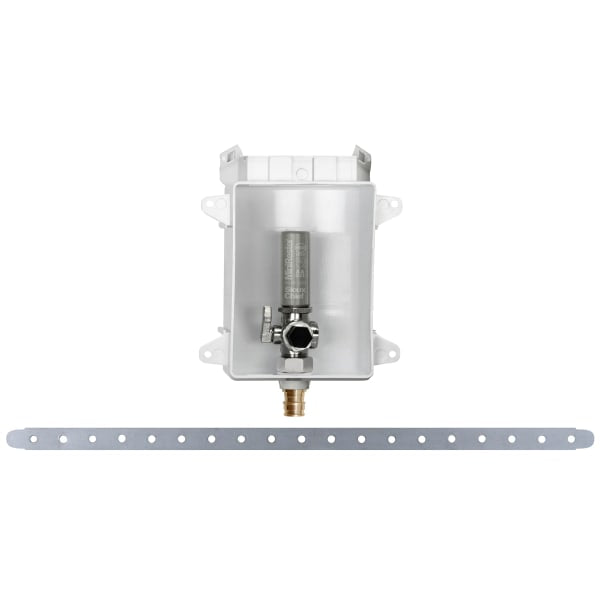

Sioux Chief 696-G1010WR is an OxBox ice maker box with a 1/2" PEX F1960 inlet and a 1/4" OD compression outlet with a water hammer arrester.

It gives the refrigerator ice maker or water dispenser line a recessed connection point, with a quarter-turn ball valve in an ABS box so the supply tube connects inside the wall behind the refrigerator. A built-in arrester absorbs the shock from the refrigerator's solenoid valve.

This is the rough-in version without a frame; add an OxBox frame at trim. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696-G1010WR
• Outlet: 1/4" OD compression
• Arrester: Yes
• Inlet: 1/2" PEX F1960
• Fire-rated: No
• Frame: Not included (rough-in)
• Standards: IAPMO PS 54
• UPC: 739236101310
• Category: Ice Maker

See also: ice maker boxes, supply outlet boxes, all Sioux Chief.
