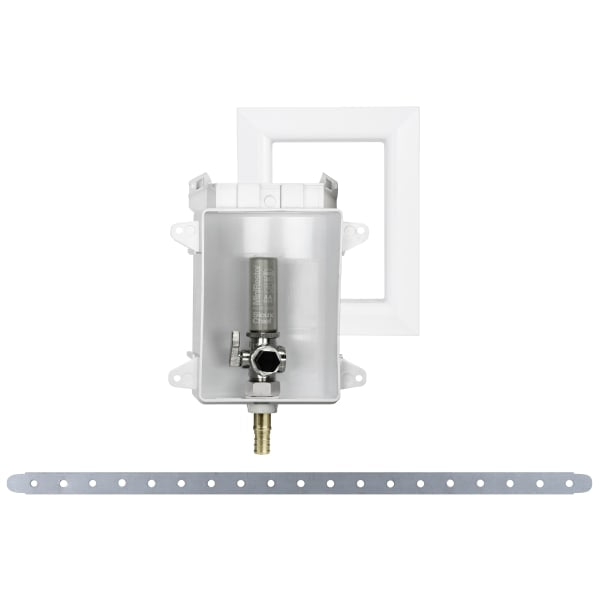

Sioux Chief 696RG1010XF OxBox Ice Maker Box with Mini-Rester PEX F1807 Fire Rated

Sioux Chief 696-RG1010XF is an OxBox fire-rated ice maker box with a 1/2" PEX F1807 inlet and a 1/4" OD compression outlet with a water hammer arrester.

It gives the refrigerator ice maker or water dispenser line a recessed connection point, with a quarter-turn ball valve in an ABS box so the supply tube connects inside the wall behind the refrigerator. A built-in arrester absorbs the shock from the refrigerator's solenoid valve.

This fire-rated version is for fire-rated wall assemblies. It ships with a frame. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696-RG1010XF
• Outlet: 1/4" OD compression
• Arrester: Yes
• Inlet: 1/2" PEX F1807
• Fire-rated: Yes, listed by Warnock Hersey to ASTM E814 and CAN/ULC S115
• Frame: Included
• Standards: IAPMO PS 54, ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
• Category: Ice Maker
