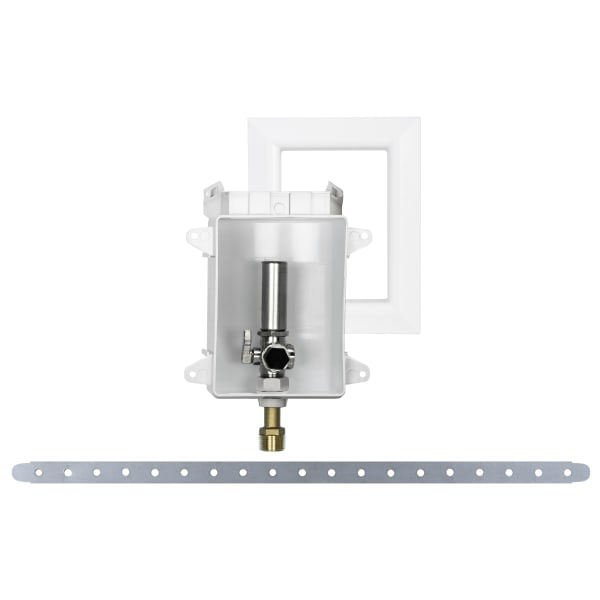

Sioux Chief 696-G1010MF OxBox Ice Maker Box with Arrester Sweat

Sioux Chief 696-G1010MF is an OxBox ice maker box with a 1/2" MIP/FSWT (sweat) inlet and a 1/4" OD compression outlet with a water hammer arrester.

It gives the refrigerator ice maker or water dispenser line a recessed connection point, with a quarter-turn ball valve in an ABS box so the supply tube connects inside the wall behind the refrigerator. A built-in arrester absorbs the shock from the refrigerator's solenoid valve.

It ships with a frame. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696-G1010MF
• Outlet: 1/4" OD compression
• Arrester: Yes
• Inlet: 1/2" MIP/FSWT (sweat)
• Fire-rated: No
• Frame: Included
• Standards: ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, IAPMO PS 54
• UPC: 739236100092
• Category: Ice Maker
• Shipping Weight: 1.403 lb

See also: ice maker boxes, supply outlet boxes, all Sioux Chief.
